Installing and removing the fill indicators of the washer fluid reservoir, vehicles with additional left cooler

Special tools and workshop equipment required

• Rear shelf - T20173-

Removing

• Place the vehicle on a lifting platform.
• Switch off ignition and all electrical consumers.

Vehicles without access and start authorisation system

• Remove ignition key, if fitted.

Vehicles with access and start authorisation system

• Store the ignition key outside the vehicle to prevent the ignition from being switched on unintentionally.

Continued for all vehicles

• Remove the right front wheel .
• Remove the spoiler on the front left wheel well .
• Place below the collecting tray - T20173- .

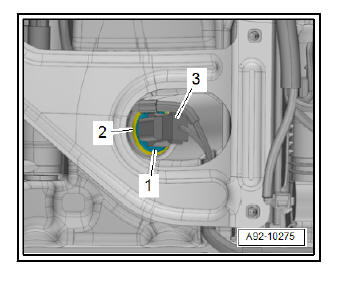

• Unplug the electrical connector -3-.
• Pull washer fluid level sender -1- out of washer fluid reservoir.

Installing

Installation is carried out in the reverse sequence; note the following:

• Check sealing grommet -2- for damage.
