Removing
- Switch off ignition and all electrical consumers.
Vehicles without access and start authorisation system
- Remove ignition key, if fitted.
Vehicles with access and start authorisation system
- Store the ignition key outside the vehicle to prevent the ignition from being switched on unintentionally.
Continued for all vehicles

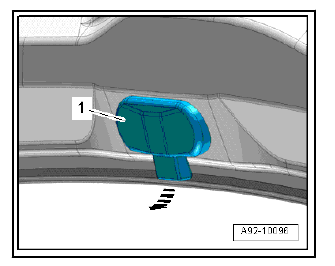

- Unclip the windscreen spray jet from the front of the flap -1- -arrow-.

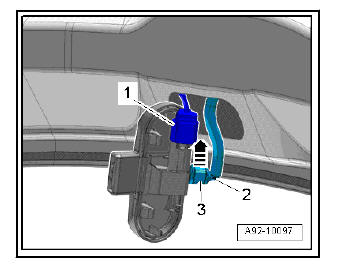

- Release the safety lock -3- in -the direction of the arrow- and remove the washer fluid hose -2- from the wash water spray jet.
- If present, disconnect electrical connector -1-.
Installing
Installation is carried out in the reverse sequence; note the following:
- When pushing on the washer fluid hose, take care that you can hear the retaining clips locking in to the connection of the washer fluid hose.
- Insert spray jet in bonnet.
