Note

• The figures show the replacement of the left turn signal lamp of the left headlamp. The turn signal in the right-hand headlamp is replaced in the same way.
• The headlight does not have to be removed.

Removing

• Switch off ignition and all electrical consumers.

Vehicles without access and start authorisation system

• Remove ignition key, if fitted.

Vehicles with access and start authorisation system

• Store the ignition key outside the vehicle to prevent the ignition from being switched on unintentionally.

Continued for all vehicles

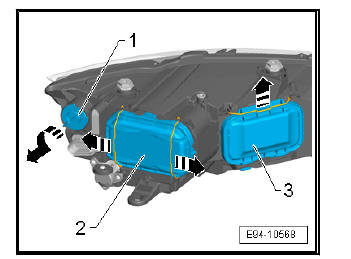

• Separate the headlight cover -3-.

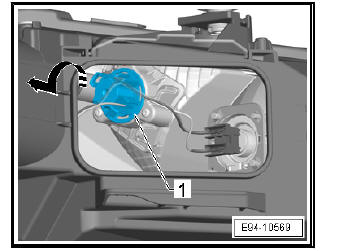

• Rotate bulb holder -1- to the left remove it in the direction of the -arrow-.

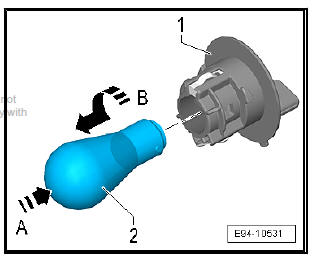

• Hold the bulb holder -1- press in the bulb -2- arrow -A- and turn to the left -arrow B- .
• Remove bulb -2- from holder -1-.
