Seat Leon >> Installation location overview - Tail Lights

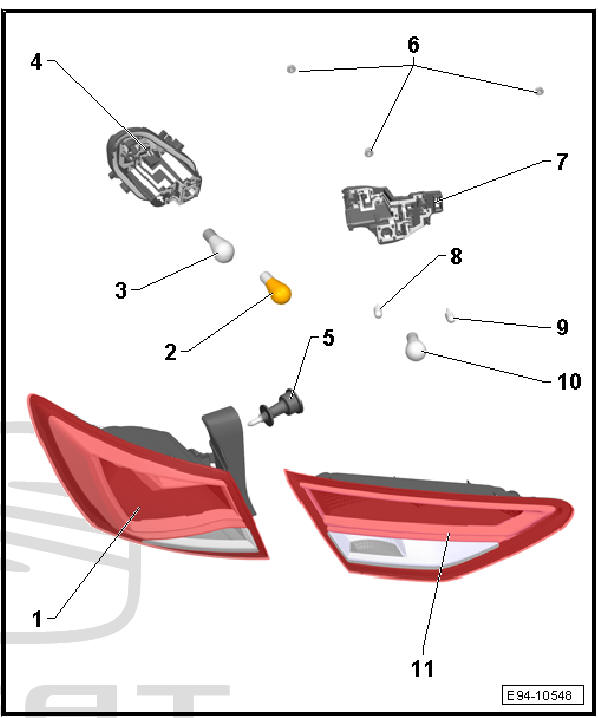

Installation overview - Tail Lights, Leon / Leon SC

Lights, bulbs, switches - exterior

  1. - Rear lights on bodywork
    • Tail light on the wing: removing and installing
  2. - Indicator bulb
    • Rear left turn signal bulb - M6-
    • Rear right turn signal bulb - M8-
    • Removal and installation
  3. - Lamp for closing / brake light
    • Replacing the bulbs, remove the bulb holder
  4. - Bulb holder on the chassis
    • Removal and installation
  5. - Securing handle
    • 3.5 Nm
  6. - Nuts
    • 3 Pieces
    • 5 Nm
  7. - Tailgate bulb holder
    • Removal and installation
  8. - Parking light bulb
    • Removal and installation
  9. - Parking light bulb
    • Removal and installation
  10. - Bulb for the reversing light or rear fog light
    • Left reversing light bulb - M16-
    • Rear fog light bulb, right side
    • Replacing the bulbs, remove the bulb holder
  11. - Rear lights on the tailgate
    • Removing and installing on the tailgate

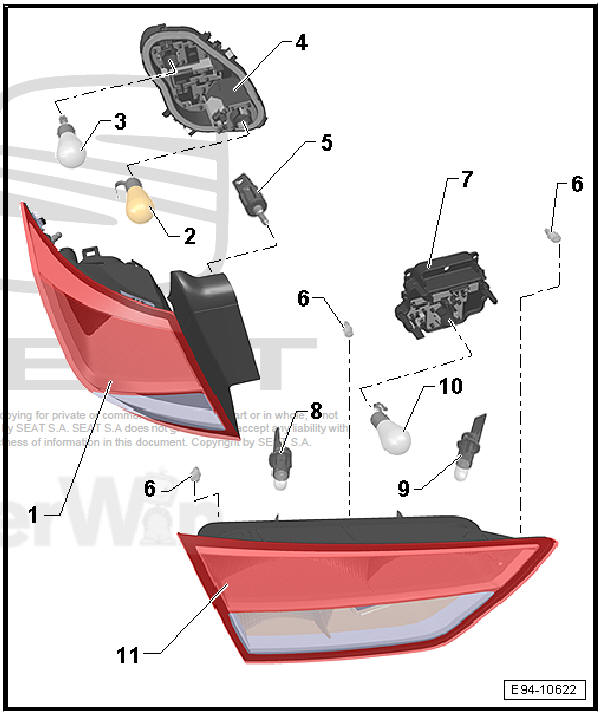

Installation location overview - Tail Lights, Leon ST

Lights, bulbs, switches - exterior

  1. - Rear lights on bodywork
    • Tail light on the wing: removing and installing
  2. - Indicator bulb
    • Rear left turn signal bulb - M6-
    • Rear right turn signal bulb - M8-
    • Replacing the bulbs, remove the bulb holder
  3. - Lamp for closing / brake light
    • Replacing the bulbs, remove the bulb holder
  4. - Bulb holder on the chassis
    • Removal and installation
  5. - Securing handle
    • 3.5 Nm
  6. - Nuts
    • 3 Pieces
    • 5 Nm
  7. - Tailgate bulb holder
    • Removal and installation
  8. - Parking light bulb
    • Replacing the bulbs, remove the bulb holder
  9. - Parking light bulb
    • Renewing bulbs
  10. - Bulb for the reversing light or rear fog light
    • Left reversing light bulb - M16-
    • Rear fog light bulb, right side
    • Replacing the bulbs, remove the bulb holder
  11. - Rear lights on the tailgate
    • Removing and installing on the tailgate

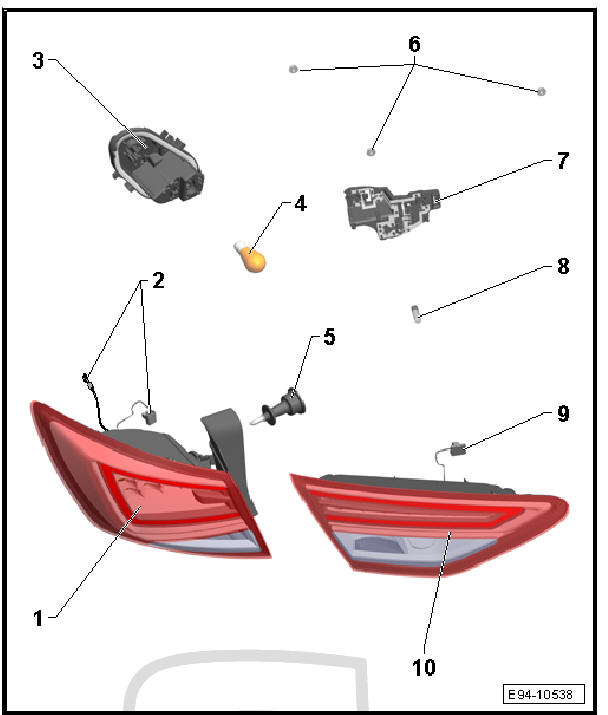

Installation location overview - rear lights, Leon / Leon SC, LED, until cw 45/16

Lights, bulbs, switches - exterior

  1. - Rear lights on bodywork
    • Tail light on the wing: removing and installing
  2. - LED connector: stop and position
    • 8 LED module: Stop and 17 LED module: Pos.
    • The LED modules are a part of the tail light of the fixed lighting system and the LEDs cannot be replaced.
  3. - Bulb holder on the chassis
    • Removal and installation
  4. - Indicator bulb
    • Rear left turn signal bulb - M6-
    • Rear right turn signal bulb - M8-
    • Replacing the bulbs, remove the bulb holder
  5. - Securing handle
    • 3.5 Nm
  6. - Nuts
    • 3 Pieces
    • 3.5 Nm
  7. - Tailgate bulb holder
    • Removal and installation
  8. - Bulb for the reversing light or rear fog light
    • Left reversing light bulb - M16-
    • Rear right fog light bulb
    • Replacing the bulbs, remove the bulb holder
  9. - LED connector: position
    • 25 LED module: Pos.
    • The LED modules are a part of the tail light of the moving lighting system and the LEDs cannot be replaced.
  10. - Rear lights on the tailgate
    • Removing and installing on the tailgate

Installation location overview - rear lights, Leon / Leon SC, LED, from cw 45/16

Lights, bulbs, switches - exterior

  1. - Nuts
    • 3 Pieces
    • 3.5 Nm
  2. - Securing handle
    • 3.5 Nm
  3. - Rear lights on bodywork
    • Tail light on the wing: removing and installing
  4. - Reverse light bulb

Note

  • For left-hand drive vehicles, this bulb is fitted in the right light
  • For right-hand drive vehicles, this bulb is fitted in the left light
  1. - Rear lights on the tailgate
    • Removing and installing on the tailgate

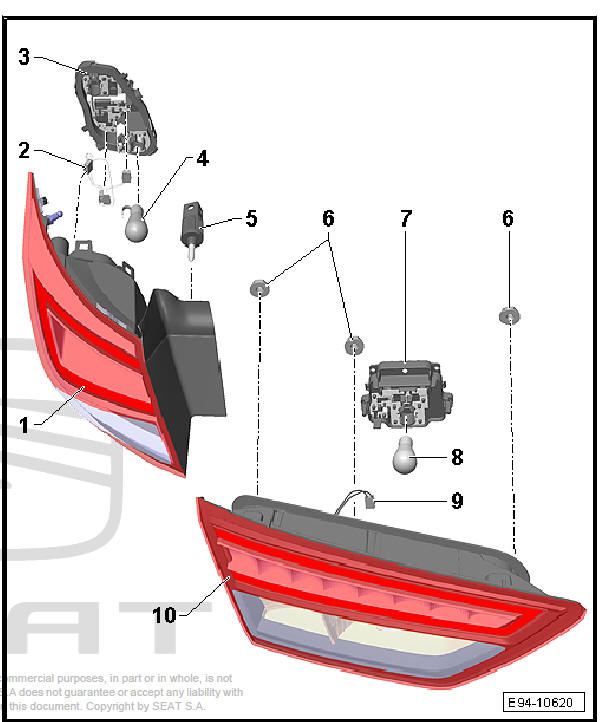

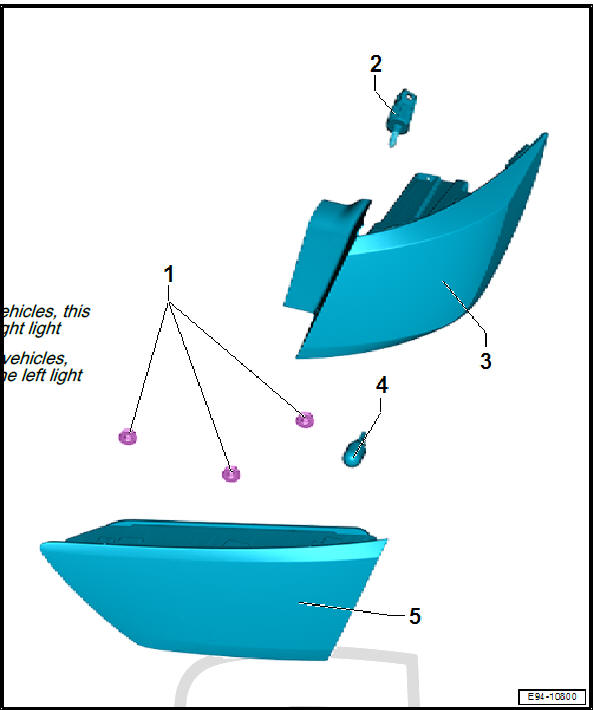

Installation location overview - rear lights, Leon / Leon ST, LED, until cw 45/16

Lights, bulbs, switches - exterior

  1. - Rear lights on bodywork
    • Tail light on the wing: removing and installing
  2. - LED connector: stop and position
    • 8 LED module: Stop and 17 LED module: Pos.
    • The LED modules are a part of the tail light of the fixed lighting system and the LEDs cannot be replaced.
  3. - Bulb holder on the chassis
    • Removal and installation
  4. - Indicator bulb
    • Rear left turn signal bulb - M6-
    • Rear right turn signal bulb - M8-
    • Replacing the bulbs, remove the bulb holder
  5. - Securing handle
    • 3.5 Nm
  6. - Nuts
    • 3 Pieces
    • 3.5 Nm
  7. - Tailgate bulb holder
    • Removal and installation
  8. - Bulb for the reversing light or rear fog light
    • Left reversing light bulb - M16-
    • Rear right fog light bulb
    • Replacing the bulbs, remove the bulb holder
  9. - LED connector: position
    • 25 LED module: Pos.
    • The LED modules are a part of the tail light of the moving lighting system and the LEDs cannot be replaced.
  10. - Rear lights on the tailgate
    • Removing and installing on the tailgate

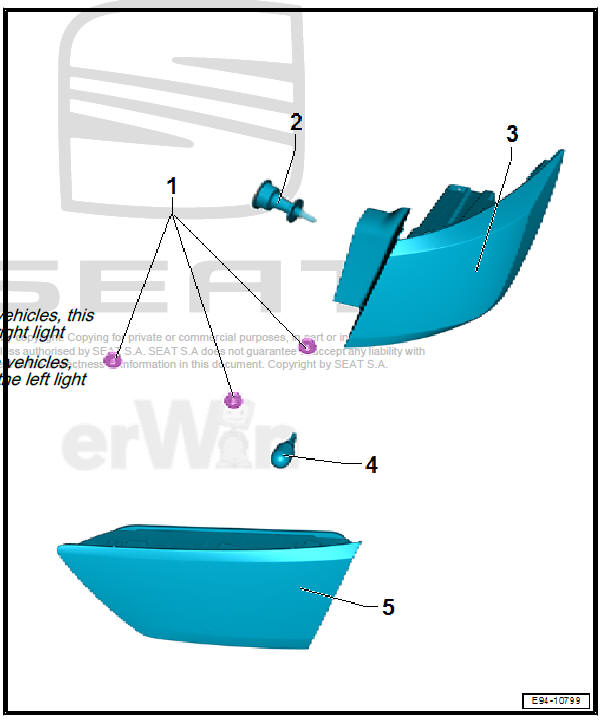

Installation location overview - rear lights, Leon / Leon ST, LED, from cw 45/16

Lights, bulbs, switches - exterior

  1. - Nuts
    • 3 Pieces
    • 3.5 Nm
  2. - Securing handle
    • 3.5 Nm
  3. - Rear lights on bodywork
    • Tail light on the wing: removing and installing
  4. - Reverse light bulb

Note

  • For left-hand drive vehicles, this bulb is fitted in the right light
  • For right-hand drive vehicles, this bulb is fitted in the left light
  1. - Rear lights on the tailgate
    • Removing and installing on the tailgate
