Removing and installing headlight range control unit

Removing

• Switch off ignition and all electrical consumers.

Vehicles without access and start authorisation system

• Remove ignition key, if fitted.

Vehicles with access and start authorisation system

• Store the ignition key outside the vehicle to prevent the ignition from being switched on unintentionally.

Continued for all vehicles

• Depending on the configuration, remove the knee airbag on driver's side .
• Remove footwell vent on driver's side .

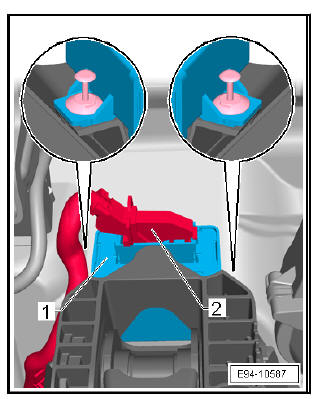

• Unplug electrical connector -2- by pressing catch and turning retaining clip; then detach connector.

• Remove the expanding clips -2- and take out headlight range control unit -1- towards rear.

Installing

Installation is carried out in the reverse sequence; note the following:

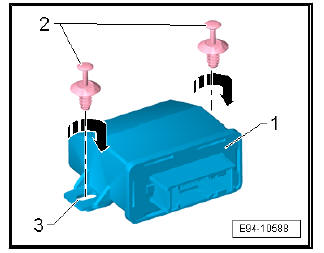

• Insert fastener -2- in opening -3- on control unit -1-, as shown in illustration, and lock by turning 90º -arrow-.
