Removing

• Remove centre console cover.

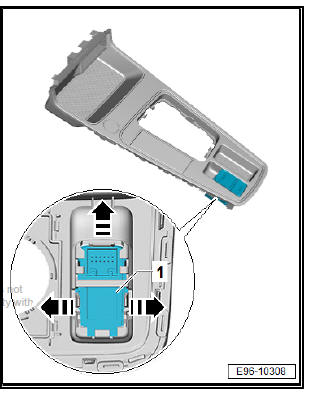

• Unlock the retaining clips -arrows- and remove the button -1- from its retainer.

Installing

Installation is carried out in the reverse sequence; note the following.

• Installing the centre console cover.

Removing and installing rear lid contact switch

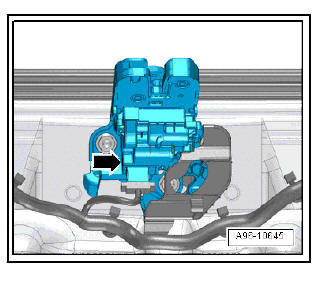

Note Tailgate contact switch is located in tailgate lock -arrow- and cannot be replaced separately in the event of a fault.

• Removing and installing tailgate lock.

Remove and install contact switch for vanity mirror F147 / F148

Note The contact switch for the vanity mirror is located in the sun visor and cannot be renewed separately if defective.

• Remove and install visor.

Removing and installing button for sunroof E325

Removing

• Switch off ignition and all electrical consumers.

Vehicles without access and start authorisation system

• Remove ignition key, if fitted.

Vehicles with access and start authorisation system

• Store the ignition key outside the vehicle to prevent the ignition from being switched on unintentionally.

Continued for all vehicles

• Remove the front roof module - WX3-.

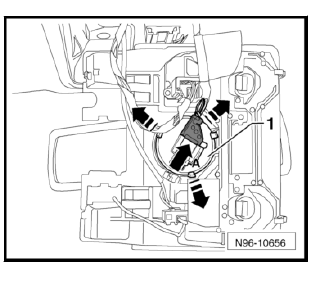

• Release and disconnect connector -arrow A-.
• Undo the retaining lugs -arrow- and remove the button -1- from the frame.

Installing

Installation is carried out in reverse order.
