Assembly overview - cigarette lighter, 12 V socket

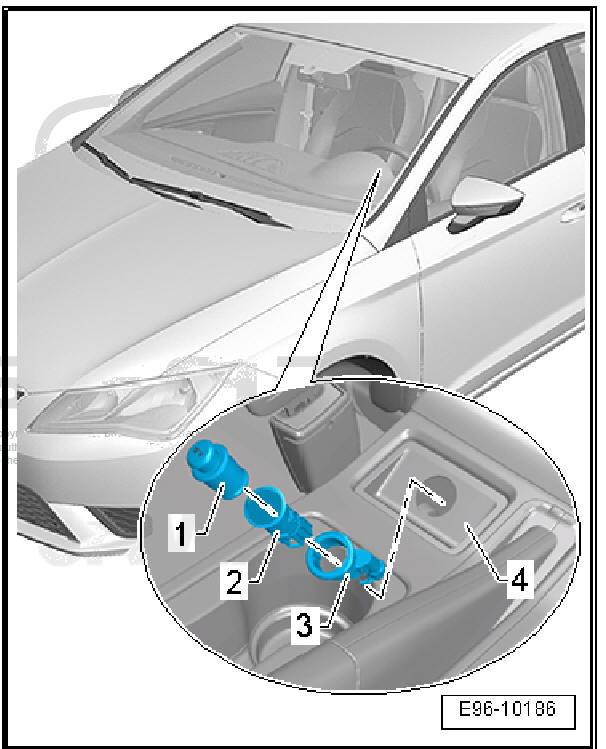

Assembly overview - cigarette lighter, 12 V socket, Leon, Leon SC

1. - Cigarette lighter - U1- or cover of the 12-V-socket - U5-
2. - Housing for cigarette lighter - U1- or 12-V-socket - U5-
   • Removal and installation
3. - Cigarette lighter illumination bulb - L28- or lamp for the 12 V socket - U5-
   • Removal and installation
4. - Centre console (front)

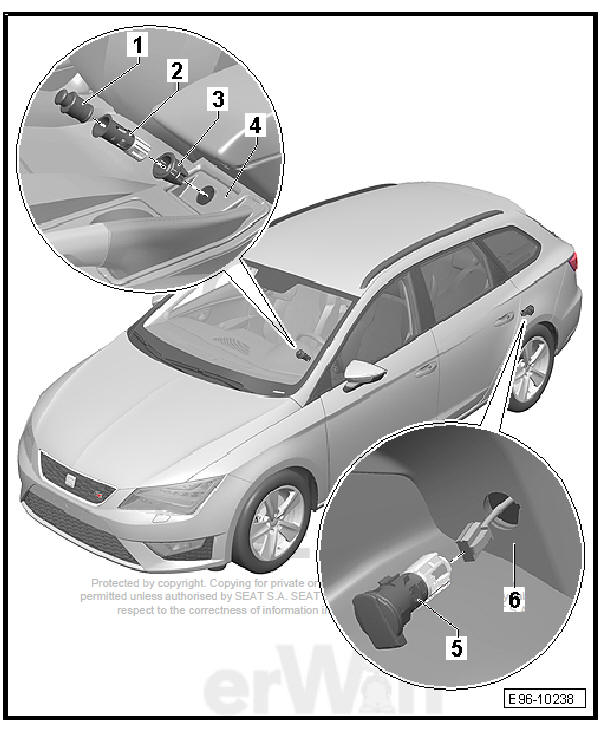

Assembly overview - cigarette lighter, 12 V socket, Leon ST

1. - Cigarette lighter - U1- or cover of the 12-V-socket - U5-
2. - Housing for cigarette lighter - U1- or 12-V-socket - U5-
   • Removal and installation
3. - Bulb for cigarette lighter light - L28- or bulb for socket lighting - L42-
   • Removal and installation
4. - Centre console (front)
5. - 12-V socket - U5-
   • Removal and installation
6. - Left-hand storage compartment holder

Removing and installing cigarette lighter - U1-

Note All instructions and references for this chapter are found under.

Removing and installing socket illumination bulb - L42-

Note All instructions and references for this chapter are found under.

Removing and installing rear cigarette lighter illumination bulb - L32-

Note All instructions and references for this chapter are found under.

Removing and installing - U- socket

Note All instructions and references for this chapter are found under .
