Seat Leon >> Removing and installing electronics box (E-box)
SEAT Leon Service and Repair Manual / Electrical system / Wiring / Relay carrier, fuse holder, E-boxes / Removing and installing electronics box
(E-box)
Removing
- With the ignition switched off, disconnect battery earth cable.
- Remove air filter housing.
Diesel engine
- Remove the engine control unit and lay to the side with connected plugs .
Petrol engine
- Remove the engine control unit and lay to the side with connected plugs .
Continued for all vehicles

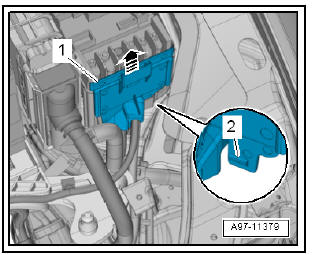

- Press release tabs -arrow- and detach cover -1- for electronics box (engine compartment).

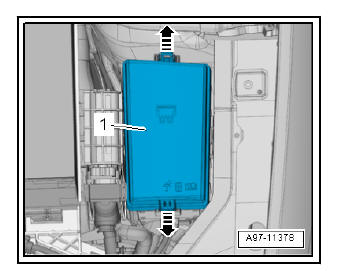

- Release retaining tab -2- with a screwdriver and pull off cover (front) -1- upwards -arrow-.
- Cut through cable tie (bottom) on wiring harness.

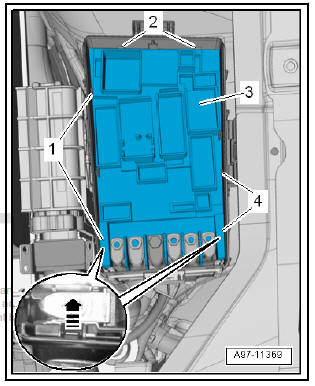

- Unlatch catch mechanisms -1, 2 and 4- in -the direction of the arrow- , remove fuse holder B -3- and place to the side.

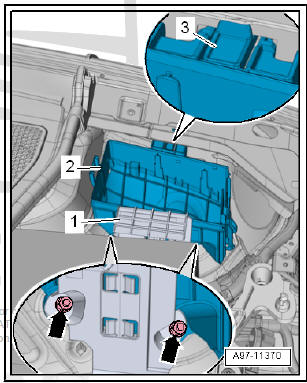

- Unscrew nuts -arrows- and detach bracket for engine control unit -1-.
- Release retaining tab -3- and disengage electronics box (engine compartment) -2- from studs.
- Lift out electronics box (engine compartment).
Installing
Installation is carried out in the reverse sequence; note the following:
- Connect battery.
