Removing and installing rear bass loudspeakers R15 / R17, 2-door vehicle

Note The removal and installation of the rear left bass loudspeaker - R15- is described. The removal and installation of the rear right bass loudspeaker takes place - R17- in the same way.

removing

• Switch off ignition and all electrical equipment.

Vehicles without access and start authorisation system

• Remove ignition key, if fitted.

Vehicles with access and start authorisation system

• Store ignition key outside the vehicle to prevent the ignition from being switched on unintentionally.

Continued for all vehicles

• Remove side trim .

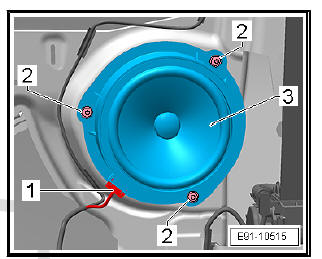

• Release and unplug electrical connector -1- at rear left bass loudspeaker - R15- -3-.
• Unscrew screws -2- and pull rear left bass loudspeaker - R15- -3- out of panel.

fitting

Installation is carried out in the reverse sequence.

Removing and installing rear bass loudspeakers R15 / R17, 4-door vehicle

Note The removal and installation of the rear left bass loudspeaker - R15- is described. The removal and installation of the rear right bass loudspeaker takes place - R17- in the same way.

removing

• Switch off ignition and all electrical equipment.

Vehicles without access and start authorisation system

• Remove ignition key, if fitted.

Vehicles with access and start authorisation system

• Store ignition key outside the vehicle to prevent the ignition from being switched on unintentionally.

Continued for all vehicles

• Remove side trim .

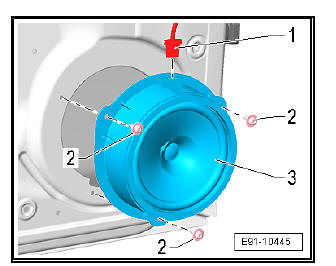

• Release and unplug electrical connector -1- at rear left bass loudspeaker - R15- -3-.
• Unscrew the screws -2- and remove the rear left bass loudspeaker - R15- -3- out of the door.

fitting

Installation is carried out in the reverse sequence.

Removing and installing front bass loudspeakers R21 / R23

Note The removal and installation of the front left bass loudspeaker - R21- is described. The removal and installation of the rear right bass loudspeaker takes place - R23- in the same way.

removing

• Switch off ignition and all electrical equipment.

Vehicles without access and start authorisation system

• Remove ignition key, if fitted.

Vehicles with access and start authorisation system

• Store ignition key outside the vehicle to prevent the ignition from being switched on unintentionally.

Continued for all vehicles

• Remove door trim.

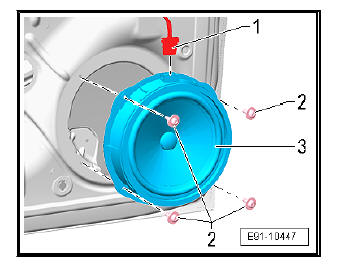

• Release and unplug connector at front left bass loudspeaker - R21- -1-.
• Remove bolts -2- at front left bass loudspeaker - R21- -3-.
• Remove the front left bass loudspeaker - R21- -3- from the door.

fitting

Installation is carried out in the reverse sequence.
