Remove and install control unit for stabilising the transmission and reception quality - R308- , León / León SC

removing

• Switch off ignition and all electrical equipment.

Vehicles without access and start authorisation system

• Remove ignition key, if fitted.

Vehicles with access and start authorisation system

• Store ignition key outside the vehicle to prevent the ignition from being switched on unintentionally.

Continued for all vehicles

• Remove right C-pillar cover.

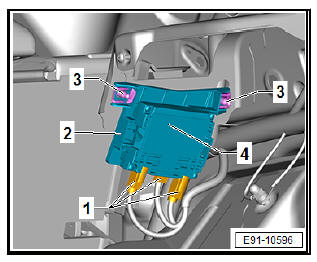

• Release and pull off connector -1-.
• Remove and install control unit for stabilising the transmission and reception quality - R308- -4- from its bracket -2-.

Installing

Installation is carried out in reverse order.

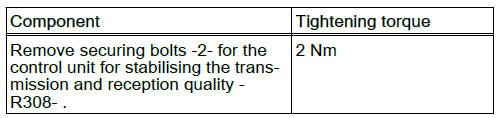

Specified torques

Remove and install control unit for stabilising the transmission and reception quality - R308- , León ST

removing

• Switch off ignition and all electrical equipment.

Vehicles without access and start authorisation system

• Remove ignition key, if fitted.

Vehicles with access and start authorisation system

• Store ignition key outside the vehicle to prevent the ignition from being switched on unintentionally.

Continued for all vehicles

• Remove right D-pillar cover.

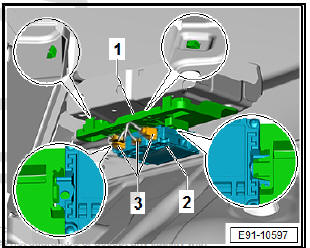

• Release and pull off connector -3-.
• Remove and install control unit for stabilising the transmission and reception quality - R308- -2- from its bracket -1-.

Installing

Installation is carried out in reverse order.
