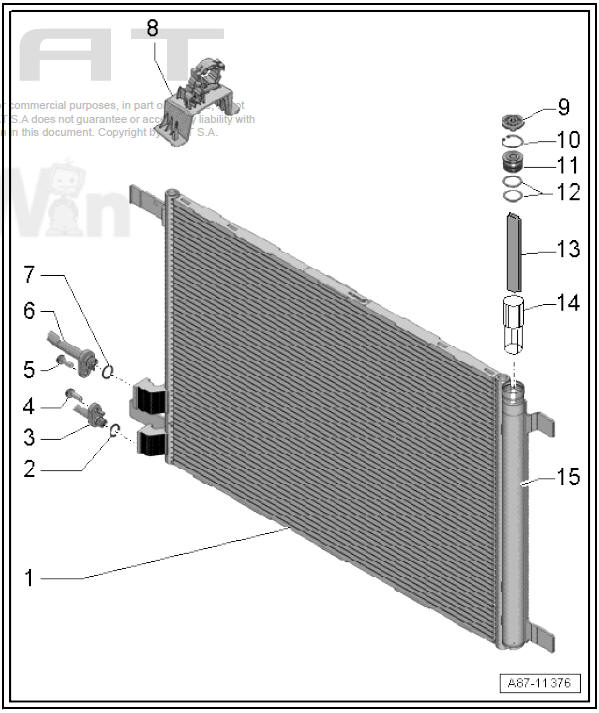

Seat Leon >> Assembly overview - condenser

Condenser, receiver

Air conditioning system

  1. - Condenser
    • Removing and fitting
  2. - O ring
    • Replace
    • Moisten with refrigeration oil before fitting
  3. - Refrigerant piping
  4. - Bolt.
    • 8 Nm
  5. - Bolt.
    • 8 Nm
  6. - Refrigerant piping
    • From the air conditioner compressor
  7. - O-ring
    • Replace
    • Moisten with refrigeration oil before fitting
  8. - Support plate
    • For refrigerant pipes
  9. - Cap
  10. - Circlip
  11. - Sealing cap
  12. - O-rings
    • Replace
    • Moisten with refrigeration oil before fitting
  13. - Dryer cartridge
    • Removing and installing:
      • Denso condenser
      • Modine condenser
  14. - Strainer
    • Removing and fitting
  15. - Receiver
    • Integrated in condenser on this version

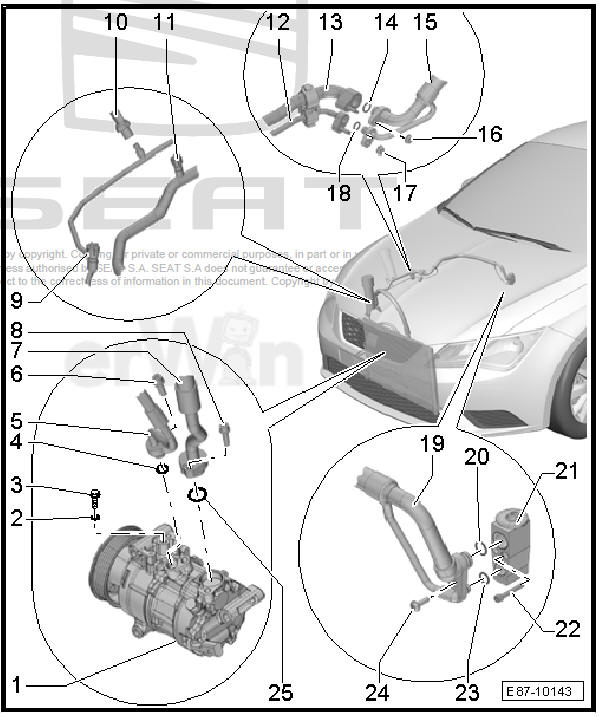

Air conditioner compressor, refrigerant lines, expansion valve

Air conditioning system

  1. - Air conditioning compressor
    • Assembly overview
  2. - Seal
    • Moisten O-ring with refrigerant oil before fitting
  3. - Oil drain plug
    • Tightening torque:
      • Denso air conditioner compressor - 30 Nm
      • Sanden air conditioner compressor - 10 Nm
  4. - O-ring
    • Replace
    • Moisten with refrigeration oil before fitting
  5. - Refrigerant piping
    • To condenser
  6. - Bolt.
    • 22 Nm
  7. - Refrigerant pipe
  8. - Bolt.
    • 22 Nm
  9. - Evacuating and charging valve, high-pressure side
    • Removing and fitting
  10. - Pressure sender for refrigerant circuit - G805-
    • 8 Nm
    • Removing and fitting
  11. - Evacuating and charging valve, low-pressure side
    • Removing and fitting
  12. - Refrigerant line - high-pressure side
  13. - Refrigerant line - low-pressure side
  14. - O-ring
    • Replace
    • Moisten with refrigeration oil before fitting
  15. - Refrigerant line with internal heat exchanger
    • Removing and fitting
  16. - Nut
    • 8 Nm
  17. - Nut
    • 8 Nm
  18. - O-ring
    • Moisten with refrigeration oil before fitting
  19. - Refrigerant line with internal heat exchanger
    • Removing and fitting
  20. - O-ring
    • Replace
    • Moisten with refrigeration oil before fitting
  21. - Expansion valve
    • Removing and fitting
  22. - Bolt.
    • 2 off
    • 10 Nm
  23. - O-ring
    • Replace
    • Moisten with refrigeration oil before fitting
  24. - Bolt.
    • 8 Nm
  25. - O-ring
    • Replacement
    • Moisten with refrigeration oil before fitting
    System overview - refrigerant circuit
    Observe instructions when working on refrigerant circuit - Refrigerant line, low-pressure side Removing and installing damper weight - Refrigerant line, high-pressure side ...

    Removing and installing refrigerant circuit pressure sender - G805-
    WARNINGDanger from refrigerant escaping under pressure! Freezing of skin and other body parts. If when loosening the G805 refrigerant escapes for more than 1 second from the cool ...
