Seat Leon >> Windscreen wiper system spray jets: Testing operation
The following instructions apply for the headlight on the right side (perform the adjustment of the headlight on the left side in the same way).
Check the nozzle setting
- Switch on the dipped beam.
- Operate the windscreen washer system for the windscreen.
The headlights will be washed when the windscreen washer lever is kept in the "wiping position" for at least 1.5 seconds.

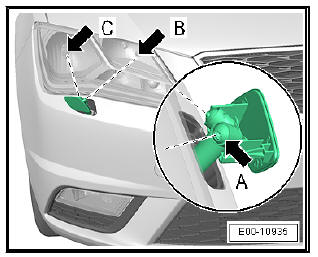

The water jet of the headlamp washer system must hit the headlight across the middle, see -B- and -C-.
Windscreen washer nozzle adjustment.
- Switch on the dipped beam.
- Operate the windscreen washer system for the windscreen.
The headlights will be washed when the windscreen washer lever is kept in the "wiping position" for at least 1.5 seconds.

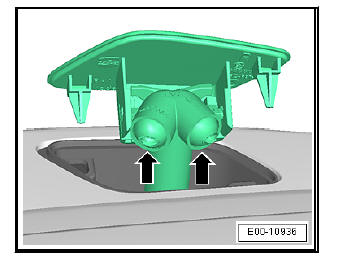

The spray nozzles -arrow- are moved out.

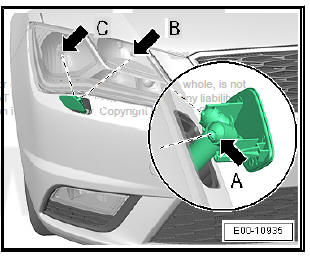

- Align the respective spray jet to the upper edge of the headlight, see -B- and -C-.
NOTICE If there is an unequal spray pattern caused by impurities in the spray jet, remove the spray jet and rinse the spray jet in the opposite direction using water. Blowing through in the opposite direction with compressed air is permitted. Do not use any objects for cleaning spray jets!
Spray jet of rear window: check and, if
necessary, adjust function
Special tools and workshop equipment required
Crown wheel adjusting tool - T40187-
Needle - 3125/5A
Checking
Compare the water jet of the nozzle with the value calculated,
adj ...
Windscreen wiper arms: check park position
Switch on the ignition.
Actuate brief wipe function and allow wiper motor to move to
the parking position.
Switch off ignition and remove ignition key.
Position wiper blades on windscreen a ...
