Seat Leon >> Connecting vehicle diagnosis and service information system

SEAT Leon Service and Repair Manual / Maintenance / Description of work / Connecting vehicle diagnosis and service information system

Special tools and workshop equipment required

  • Vehicle diagnosis tester

NOTICE It must be ensured that the selected vehicle diagnostic and service information system is only used with the associated diagnostic cable.

CAUTION
  • Always secure testing and measuring equipment on the rear seat during a road test.
  • While the vehicle is moving this equipment must be operated by a second person; NOT by the driver.

Work sequence

  • Apply handbrake.
  • Automatic gearbox: set the selector lever in the position "P" or "N".
  • Manual gearbox: gear lever at neutral.

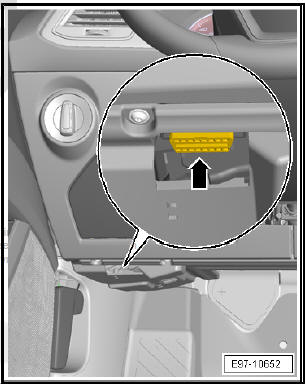

  • If the ignition is switched off connect the vehicle diagnostic and service information system .
  • Switch on the ignition.

Now follow instructions on screen in order to start desired functions.
