Seat Leon >> Check liquid level and top up if necessary
SEAT Leon Service and Repair Manual / Maintenance / Description of work / Coolant level and anti-freeze in cooling
system: checking / Check liquid level and top up if necessary
| DANGER The coolant tank is under pressure. Open only when the engine is cold! |
NOTICE Permitted coolant additive.
- The vehicle must be parked horizontally.

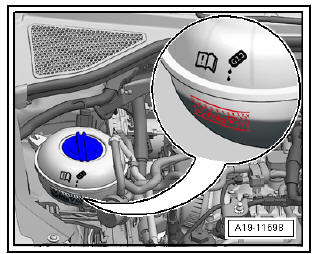

- Check coolant level on expansion tank while the engine is
cold.
- Delivery inspection: the coolant level must at least reach the "MAX"-mark.
- Delivery Inspection: the coolant level must be above the "MIN" mark.
| CAUTION The coolant additive G13 must not be mixed with any other additive. |
- If the coolant level is insufficient, add the necessary quantity, observing the mixture ratio.
NOTICE If fluid loss is greater than can be expected through normal use, determine source and rectify (repair measure).

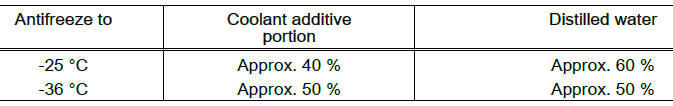

Mixture ratio
| WARNING Only distilled water may be used for mixing coolant additives. The use of distilled water ensures optimum protection against corrosion. |
Checking frost protection, replenishing
coolant additive if necessary
Special tools and workshop equipment required
Refractometer - T10007A
NOTICE
The water used for the mixtures heavily influences the effectiveness
of the coolant. Because the water quality d ...
