Seat Leon >> Suspension strut, upper suspension link

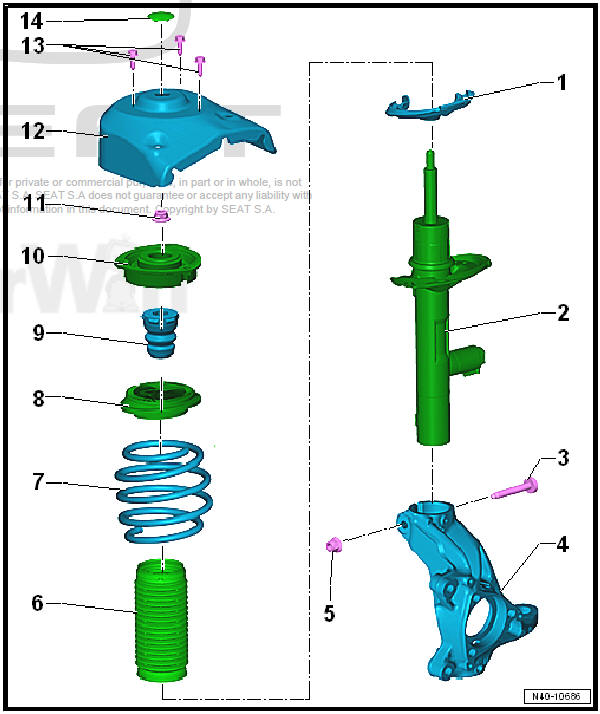

Assembly overview - suspension strut, upper suspension link

Front suspension

  1. - Spring seat
    • Check fitting position
  2. - Shock absorber
    • Different versions possible.
  3. - Bolt
    • Always renew after removing
    • Tip of bolt must point in direction of travel.
    • 70 Nm +180º
  4. - Wheel bearing housing
    • Different versions possible.
  5. - Nut
    • Always renew after removing
  6. - Dust guard
    • Different versions possible.
  7. - Coil spring
    • Removing and installing
    • The surface of the spiral spring must not be damaged
    • Different versions possible.
  8. - Axial roller bearing
  9. - Buffer stop
    • Different versions possible.
  10. - Telescopic arm bearing
    • Pay attention to installation position
  11. - Nut
    • Always renew after removing
    • 60 Nm
  12. - Front part of the body
  13. - Bolt
    • Always renew after removing
    • 20 Nm +90º
  14. - Cover
Lowering subframe
Special tools and workshop equipment required Engine elevator - V.A.G 1383 A- Torque wrenches - V.A.G 1332- Removing Turn steering wheel to straight-ahead position and remove igni ...

Removing and installing suspension strut
Special tools and workshop equipment required Torque wrenches - V.A.G 1332- Spreader - 3424- Engine elevator - V.A.G 1383 A- Mounting - T10149- Special tools and workshop equipment ...

See also:

Transportation devices: remove blocking pieces from front axle springs
NOTICE On some vehicle models locking element are installed in the front suspension struts. You can recognise these vehicles by the label that is hanging on the handle (passenger side). There ma ...
