Assembly overview - subframe

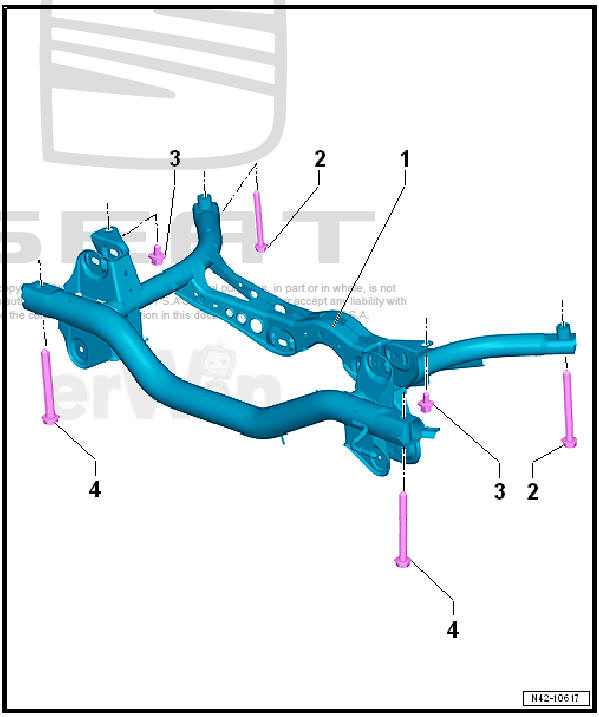

Assembly overview - subframe, multi-link suspension, front-wheel drive

Rear suspension

  1. - Sub-frame
    • Removing and installing subframe with attachments
  2. - Bolt
    • Always renew after removing
    • 70 Nm +180º
  3. - Bolt
    • Always renew after removing
    • 50 Nm +45º
  4. - Bolt
    • Always renew after removing
    • 70 Nm +180º

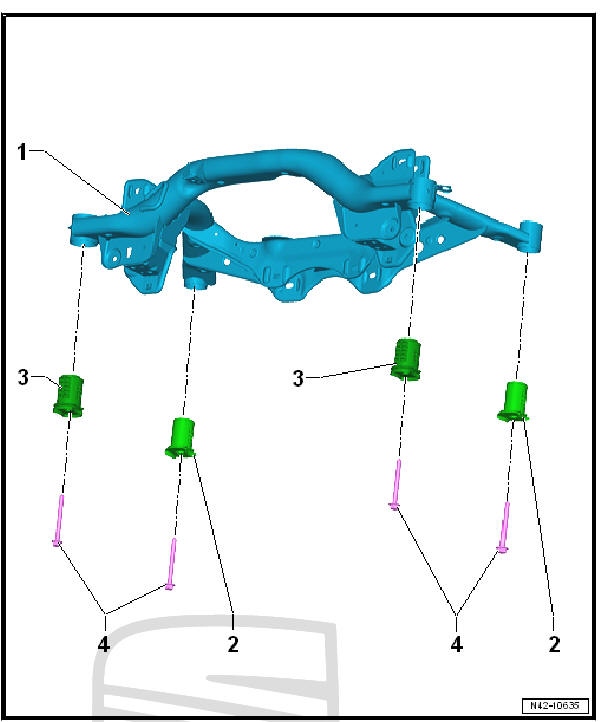

Assembly overview - subframe, multi-link suspension, four-wheel drive

Rear suspension

  1. - Sub-frame
    • Removing and installing subframe with attachments
  2. - Bonded rubber bush (rear)
    • Replace
  3. - Bonded rubber bush (front)
    • Replace
  4. - Bolt
    • Always renew after removing
    • 70 Nm +180º
