Seat Leon >> Automatic anti-dazzle interior mirror*
The automatic anti-dazzle function can be switched on and off as desired.

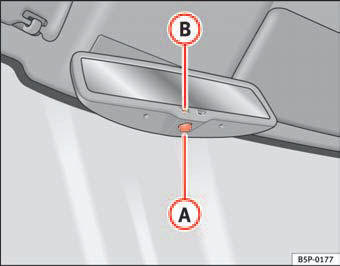

Fig. 85 Automatic antidazzle interior mirror.
Switching off anti-dazzle function
– Press button A fig. 85. Warning lamp B goes out:
Switching on anti-dazzle function
– Press button A fig. 85. Warning lamp is lit.
Anti-dazzle function
The anti-dazzle function is activated every time the ignition is switched on.
The green indicator lamp lights up in the mirror housing.
When the anti-dazzle function is activated the interior mirror will darken automatically according to the amount of light it receives (for example from the headlights of a vehicle behind). The anti-dazzle function is cancelled if reverse gear is engaged.
Note
• The automatic anti-dazzle function will only work properly if the sun
blind* for the rear window is retracted and there are no other objects
preventing light from reaching the interior mirror.
• If you have to stick any type of sticker on the windscreen, do not do so in
front of the sensors. Doing so could prevent the anti-dazzle function from
working well or even from working at all.
Mirrors
Interior mirror
It is dangerous to drive if you cannot see clearly through the
rear window
Manual anti-dazzle function for interior mirror
In the basic mirror position, the lever at the bottom edg ...
Exterior mirrors
The exterior mirrors can be adjusted using the rotary knob in
the centre console.
Fig. 86 Exterior mirror
control
Basic setting of exterior mirrors
1. Turn knob fig. 86 to position L (lef ...
