Seat Leon >> Ashtray*

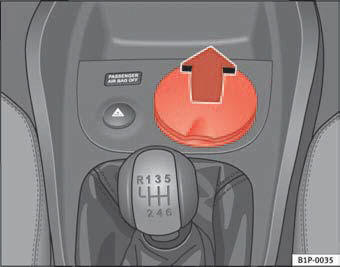

Fig. 98 Ashtray located in the front drinks holder
Opening and closing the ashtray
– To open the ashtray, lift the cover fig. 98.
– To close, lower the cover.
Emptying the ashtray
– Extract the ashtray and empty.
WARNING
Never put paper in the ashtray. Hot ash could ignite the paper in the ashtray.
Cigarette lighter*
Fig. 99 The cigarette
lighter is located in the
electric socket on the
front of the centre console
– Press on the cigarette lighter fig. 99 to activate it
.
– Wait for the lighter to ...
