Seat Leon >> Dipped beam lights
Fig. 164 Dipped headlights
– Raise the bonnet
– Remove the loops fig. 164 1 in the direction of the arrow and
remove the cover.

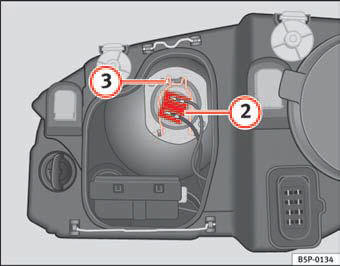

– Remove the connector fig. 165 2 from the bulb.
– Disengage the retainer spring fig. 165 3 pressing inwards
and to the right.
– Extract the bulb and fit the replacement so that the rim of the
attachment plate is on the reflector cut-out.
Turn signal lamps
Fig. 163 Turn signal
lamps
– Raise the bonnet.
– Rotate the lamp holder fig. 163 A to the left and pull.
– Remove the bulb by pressing on the lamp holder and rotating at
the s ...
Main beam lights
Fig. 166 Main beam
headlights
Fig. 167 Main beam
headlights
– Raise the bonnet
– Remove the cover fig. 166 C by pulling on this.
– Remove the connector fig. 1671 from the b ...
