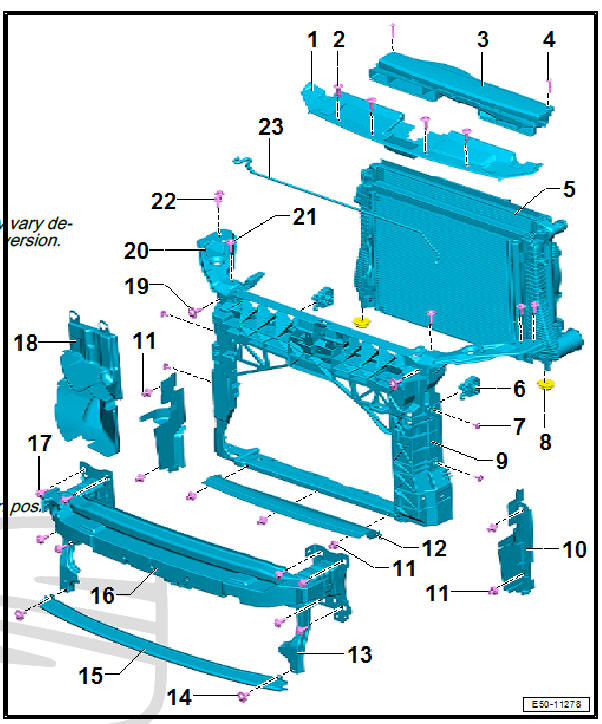

1. Lock carrier cover
   • Removing and fitting
2. Expansion rivet
   • 4 off
3. Intake ducting

Note The intake air duct may vary depending on the engine version.

4. Bolt.
   • 2 off
   • To secure the intake air duct
   • 2+- 0.3 Nm
5. Radiator assembly
6. Radiator mount bracket

Note Note correct installation position.

7. Bolt.
   • 2 + 2 each
   • For fixing and controlling the lock carrier position.
   • 8 Nm
8. Bracket (bottom)
9. Lock carrier
10. Air duct
    • Left-side
    • Right.
11. Expansion rivet
    • 4 + 4 each
    • For fixing the air ducts for the radiator
12. Air duct
    • Bottom
    • Affixed to the lock member using expansion rivets
13. Impact bar
    • With bumper moulded part
14. Bolt
    • 1 + 1 each
    • For affixing the pedestrian protection crossbeam to the impact bar
15. Protective support for pedestrians
    • Remove the bolts
16. Shock absorber
17. Bolt.
    • 4 + 4 each
    • 55 Nm
    • For securing the impact bar
18. Auxiliary radiator air duct
    • Depending on version
    • Right.
    • Depending on the version, an auxiliary radiator air duct can be fitted on the left side on vehicles with automatic gearboxes
19. Bolt.
    • 1 + 1 each
    • For attaching the strut
    • 8 Nm
20. Lock carrier struts
21. Bolt.
    • 1 + 1 each
    • For attaching the strut lock member
    • 8 Nm
22. Bolt.
    • 2 + 2 each
    • 12 Nm
23. Front bonnet support rod

Assembly overview - cylinder head

1. Rear fairing
2. Cooler shutter servomotor - V544-
3. Bolt.
   • 2 off
4. Bolt.
5. Wiring harness
6. Blade module
7. Bolt.
   • 2 off
   • 8 Nm
8. Front fairing
