Special tools and workshop equipment required

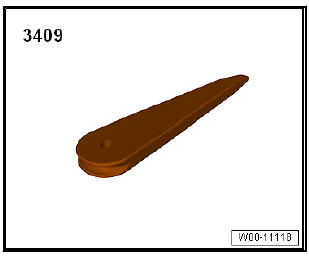

  • Release lever - 3409-

Body - front

Removing

  • Remove the grille below the windscreen

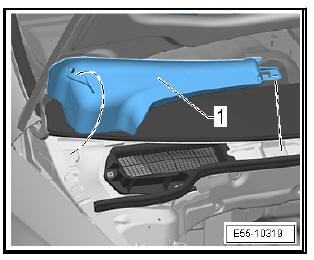

  • Clip out the cover -1- and remove from the holder.

fitting

Installation is done in reverse order of removal operations.

Body - front

Air duct grille: removing and installing

Special tools and workshop equipment required

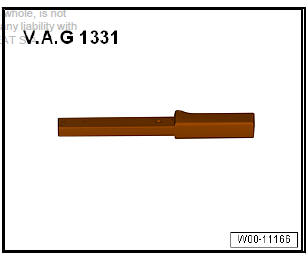

  • Torque wrench - V.A.G 1331-

Body - front

Removing

  • Remove the air duct grill cover.

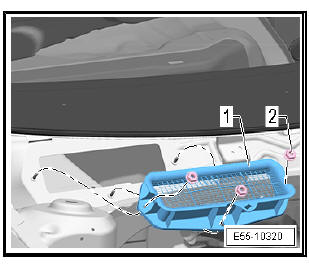

  • Unscrew the bolts -2- and remove the grill of the air duct -1-.

Body - front

fitting

Installation is done in reverse order of removal operations.

Specified torques

Body - front

    Removing and installing plenum chamber cover
    Special tools and workshop equipment required Release lever - 3409- Release tool - T10236- Removing Remove windscreen wiper arm. Lift the front bonnet. Use the rod to keep it op ...
