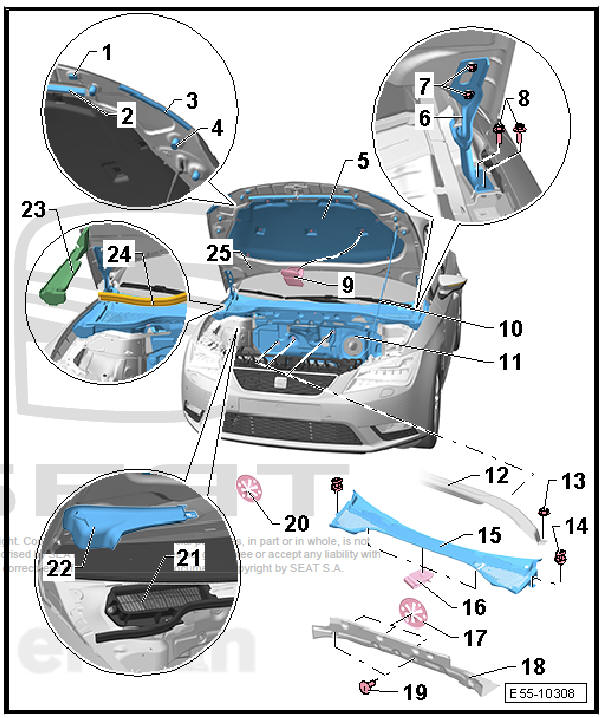

Seat Leon >> Assembly overview - bonnet

Bonnet, rear lid

  1. - Fixed rubber limiters
    • 2 off
  2. - Bonnet seal
    • In the middle
    • 1x
  3. - Bonnet seal
    • On the side
    • 2 off
  4. - Adjustment buffer
    • Using the adjustment catches, the height of the bonnet can be adjusted in relation to the wings
    • 2 + 2 each
  5. - Bonnet sound proofing
    • Fixed by retaining clips
  6. - Hinge for bonnet
  7. - Nut
    • 2 + 2 each
    • 24+- 2 Nm
  8. - Bolt.
    • 2 + 2 each
    • 24+- 2 Nm
  9. - Retaining clip
    • 5 off
  10. - Front bonnet support rod
  11. - Engine compartment noise insulation
    • Depending on the version
  12. - Plenum chamber cover
  13. - Nut
    • 1 + 1 each
    • 9+- 1 Nm
  14. - Expansion rivet
    • 1 + 1 each
    • Always replace.
  15. - Grille below windscreen
  16. - Quick locking nut
    • 3 off
  17. - Retaining clip
    • To fix the noise insulation of the plenum chamber cover
    • 3 off
    • Open with screwdriver
    • Always replace.
  18. - Soundproofing on water box
    • Depending on the version
  19. - Securing cap
    • To fix the noise insulation of the plenum chamber
    • 2 off
  20. - Retaining clip
    • For attaching the bonnet noise insulation
    • 5 off
    • Open with screwdriver
    • Always replace.
  21. - Air duct grille
  22. - Air duct grille cover
  23. - Separator
    • 1 + 1 each
    • Removing and fitting
  24. - Plenum chamber seal
  25. - Bonnet
    • Adjusting
