Removing

• Lift the front bonnet. Use the rod to keep it open.

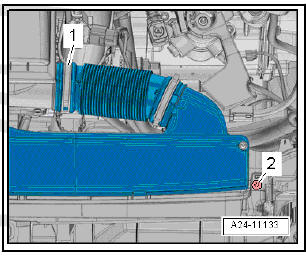

• Release clip -1- and remove air hose.

Note The configuration of the air supply ducts may vary depending on the engine version.

• Undo the screws -2- from both sides.

• Unclip the retaining clips of the air duct at lock carrier and detach.

• Remove the bonnet catch.

• Remove operating lever.

• Partially remove lower A-pillar cover.

• Partially remove the protective foam from the work area.

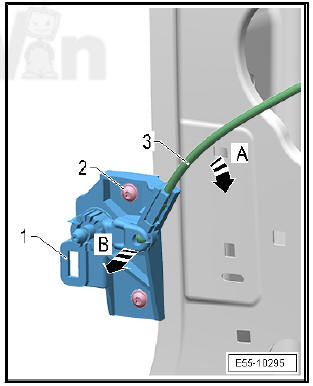

• Unscrew bolts -2- and remove lever mount -1-.

• Clip out the cable-3- of the lever bracket -1-.

• Turn the cable -3- through 90º in direction of arrow -a-.

• Unfasten the cable -3- and remove from sleeve by moving in -direction of arrow b-.

Separate the cable for opening the bonnet from the coupling sleeve. To do so, proceed as follows:

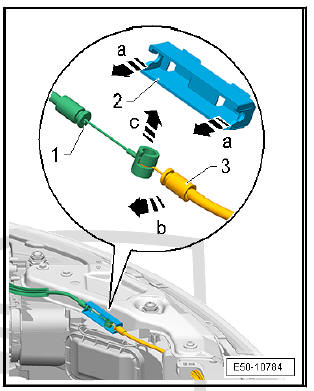

• If fitted, clip out the cover for the coupling sleeve -2-.
• Clip out cable -1- and -3- in -the direction of arrow a- from the coupling sleeve -2-.
• Turn cable -3- 90º in the direction of arrow -b-.
• Clip cable -3- out of the socket of cable -1- by turning in the -direction of arrow c-.
• Fix a cord or cable to the end of the Bowden cable on the side of the operating lever that has the following characteristics:
  • Diameter: the same or smaller than the Bowden cable average.
  • Length: minimum 1,000 mm.

Note After removal, make sure that a cable with sufficient length is visible from the side of the engine compartment so that it can be tied again.

• Pull on the cable until it has been pulled out completely.
• Separate the cable and hold the cable in position.

fitting

Fit in reverse order from removal, remembering the following:

• Use cable pulled in during removal to pull in the new control cable.

Removing and installing support rod

Removing

• Hold the bonnet tight with suitable workshop equipment.

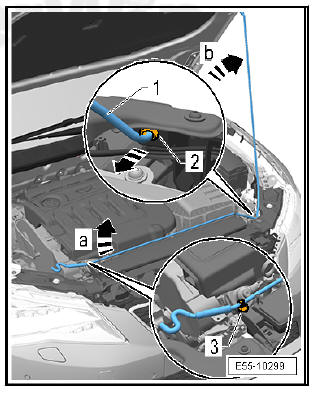

• Unclip the support rod -1- on the retaining clip -3-, swivel it upwards -Arrow a- until it is arranged vertically -Arrow b- and remove it from the rubber grommet -2- in direction of -arrow-.

fitting

Fit in reverse order from removal, remembering the following:

• Install the support rod -1- in the rubber grommet -2- . Swing the support rod to the lock carrier.
