Seat Leon >> Removing and installing actuator
SEAT Leon Service and Repair Manual / General body repairs, exterior / Bonnet, rear lid / Tailgate / Luggage lid / Removing and installing actuator
Special tools and workshop equipment required

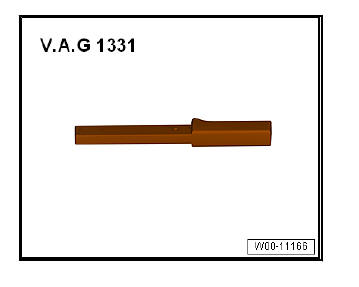

- Torque wrench - V.A.G 1331-
Removing
- Open the tailgate.
- Remove lower tailgate trim.

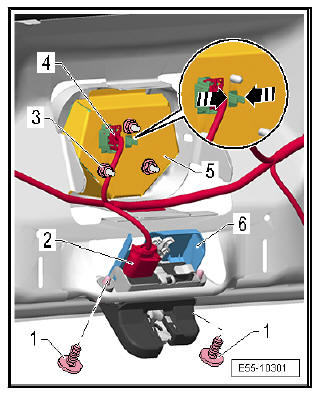

- Detach connector -4-.
- Loosen nut -3-.
- Turn the retaining clips in the direction of the -arrows- and remove the rear handle -5-.
- Pull off the handle.
fitting
Fit in reverse order from removal, remembering the following:
Caution Before closing the tailgate, check that the unlocking components are operating. |
