Seat Leon >> Removing and installing door arrester

Removing

Note Protect A-pillar in vicinity of door holder with masking tape to avoid damaging paintwork.

  • Move door window to "closed" position.
  • Remove the speaker. Front left base speaker - R21- .

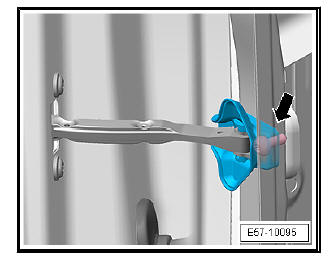

  • Unscrew bolt -arrow- on door retainer.

Front doors, door components, central locking

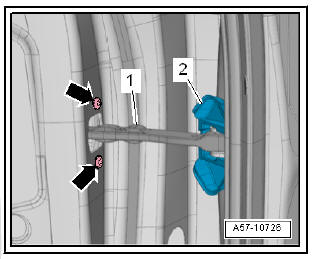

  • Remove the grommets -2-.
  • Remove the screws-arrows- and the door holder -1- through the loudspeaker opening.

fitting

Fit in reverse order from removal, remembering the following:

Front doors, door components, central locking
