Seat Leon >> Exploded view - door handle and door lock

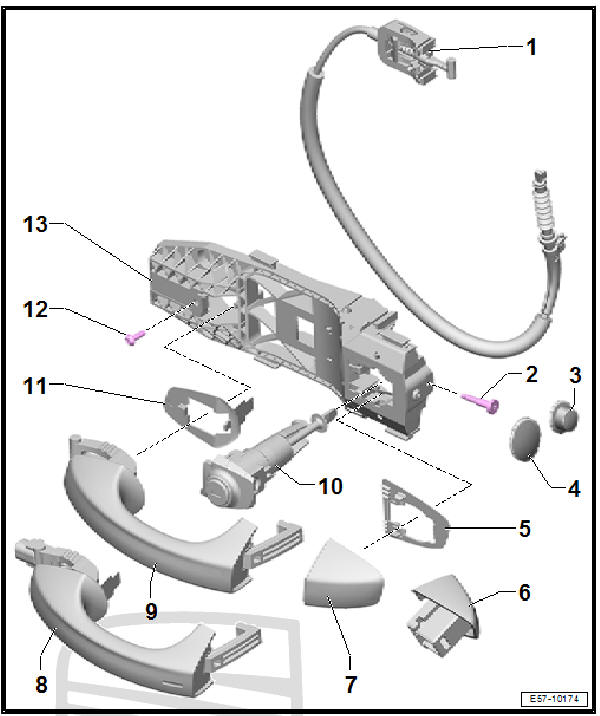

Exploded view - door handle and door lock (part I)

Front doors, door components, central locking

  1. - Cable for the outside handle (front door)
    • Bowden cable
  2. - Bolt.
    • Driver side
    • For the lock cylinder
    • 3.5 Nm
  3. - Sealing plug
    • For screw
  4. - Anti-jam protection
    • 1x
    • Stuck to door panel
  5. - Backing plate (rear)
    • For the seat of the lock cover of the outside handle or the locking cylinder
  6. - Cover for the lock of the outside handle (front door)
    • Passenger side
    • Fixed via the locking bar on the mount of the outside handle
  7. - Cover of the lock cylinder
    • Driver side
    • Clipped into the lock cylinder.
  8. - Outside handle (front door) with Kessy system
  9. - Outside handle (front door)
  10. - Lock cylinder
    • Driver side
    • Complete this process when replacing a key
  11. - Backing plate (front)
    • For the seat of the outside handle
  12. - Bolt.
    • 1.7 Nm
  13. - Mount for the outside handle (front door)

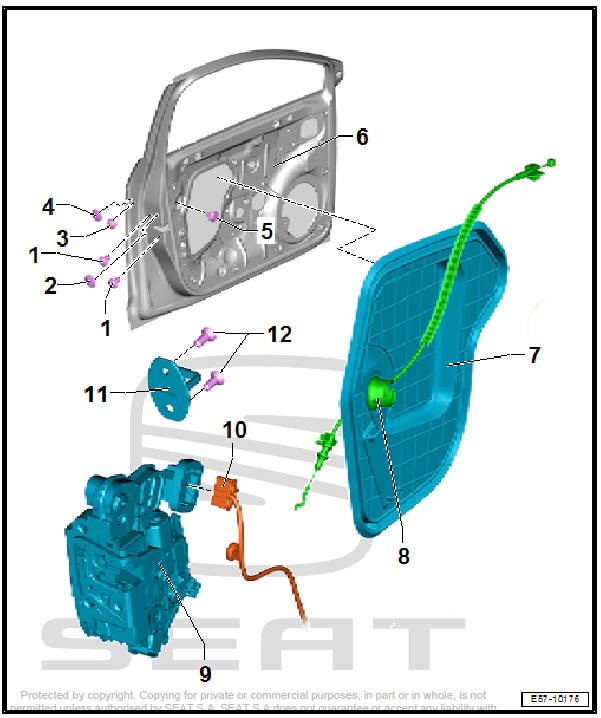

Exploded view - door handle and door lock (part II)

Front doors, door components, central locking

  1. - Bolt.
    • 2 off
    • With washer
    • 19 Nm
  2. - Sealing plug
    • Fitted into door panel
  3. - Sealing plug
    • Fitted into door panel
  4. - Anti-jam protection
    • 1x
    • Stuck to door panel
  5. - Bolt.
    • 1x
  6. - Front door
  7. - Inside protective cover
  8. - Cable for the inside handle (front door)
    • Bowden cable
  9. - Door lock
    • With seal cover
  10. - Door lock connector
  11. - Striker plate
    • With plastic base.
  12. - Bolt.
    • 2 off
    • 24 Nm
