Removing

• Roof trim removed
• Removed roller blind cover

Note

• A second person is needed to remove the frame with the actuating mechanism.
• One person must loosen the bolted connections while a second holds the frame with the actuating mechanism and takes it out of the vehicle.
• Before removal, mark the position of the frame with actuating mechanism in order to maintain the alignment of the frame.

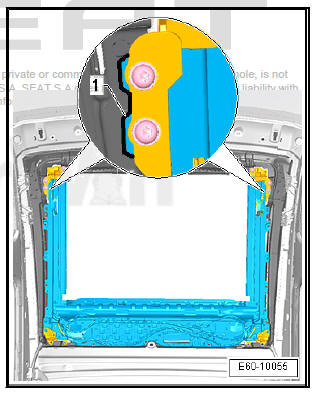

• Using a permanent marker, attach a mark -1- to label the position of the frame with actuating mechanism in relation to the frame of the sliding/tilting sunroof.

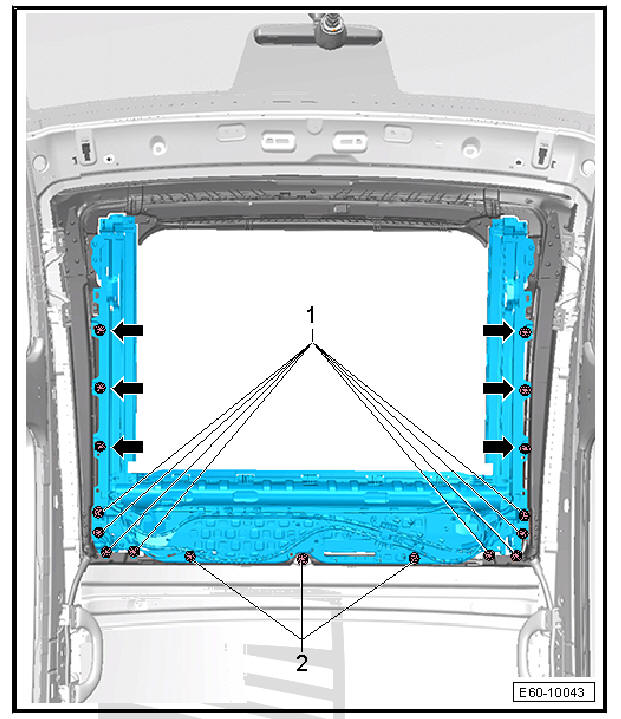

• Unscrew the bolts -1- and -2-.

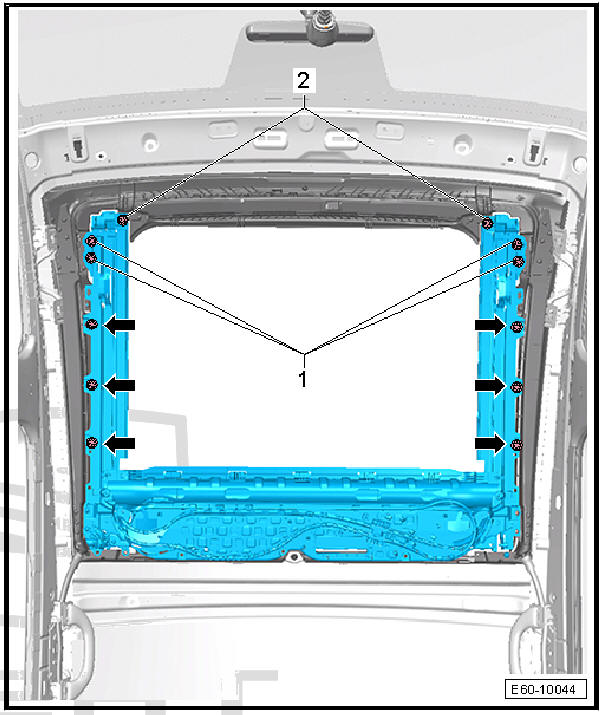

• Unscrew the bolts -1- and -2-.

• Open the tailgate.
• With help from a second person hold the frame with actuating mechanism, and now remove the screws -arrow-.
• Take the frame with actuating mechanism out via the rear lid.

fitting

Fit in reverse order from removal, remembering the following:

Note

Do not interchange! The screws for fastening the frame with actuating mechanism are different in terms of type and size, and are specific in their position.

• Insert frame. Slightly screw-in the bolt - however do not yet tighten to the specified tightening torque.
• Align the frame to the markings previously marked.

• Use the tightening torque of the screws.
