Seat Leon >> Pulling rib: removing and installing

Caution

The following component does not have to be removed when removing the pulling rib:

  • sliding/tilting sunroof frame roller blind

Removing

  • Open the panoramic window.
  • Slide sun blind forwards, closing it about halfway.
Caution

There is risk of breakage.

  • Do not separate the top element of the sliding piece too much from its bottom element.

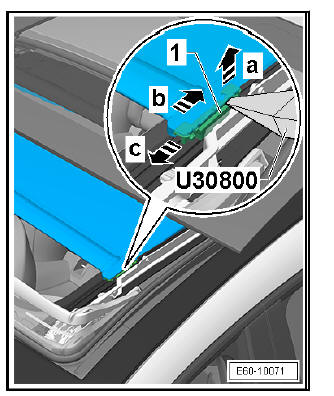

  • Slightly separate both elements of the sliding piece using the lever - U30800- -arrow a- to loosen the tab -1- (unclip). Keep both elements of the sliding piece separated from each other.

    Move the bottom element in the direction of the -arrow c- and the top element in the direction of the -arrow b-.

  • Remove the pulling rib.

Sunroof

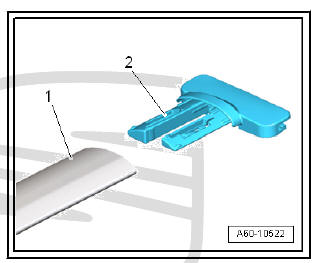

  • Remove from both sides of the pulling rib -1- the top elements of the sliding piece -2- to the side.

Sunroof

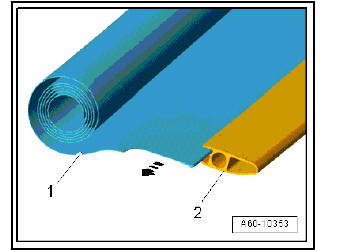

  • Remove the material -1- of the roller blind together with the rod in the direction of the -arrow- and take it out of the pulling rib -2-.

fitting

Fit in reverse order from removal, remembering the following:

Sunroof

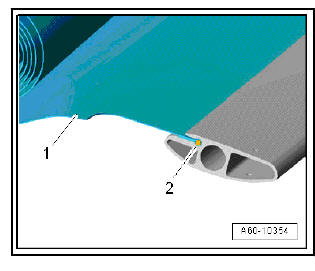

  • Carefully insert the material -1- together with the rod -2- into the fastening groove of the pulling rib.

Sunroof

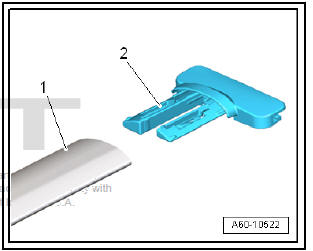

  • Laterally insert from both sides of the pulling rib -1- the top elements of the sliding piece -2-.

Sunroof

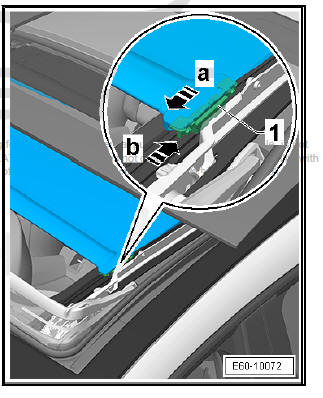

  • Fit the upper part of the sliding piece together with the pulling rib onto the bottom part and move the parts in the direction of -arrow a- or arrow -b-. Check if the tab -1- is correctly engaged.
  • Repeat the process on the other side of the pulling rib.

Sunroof
