Removing

• Open front glass panel.

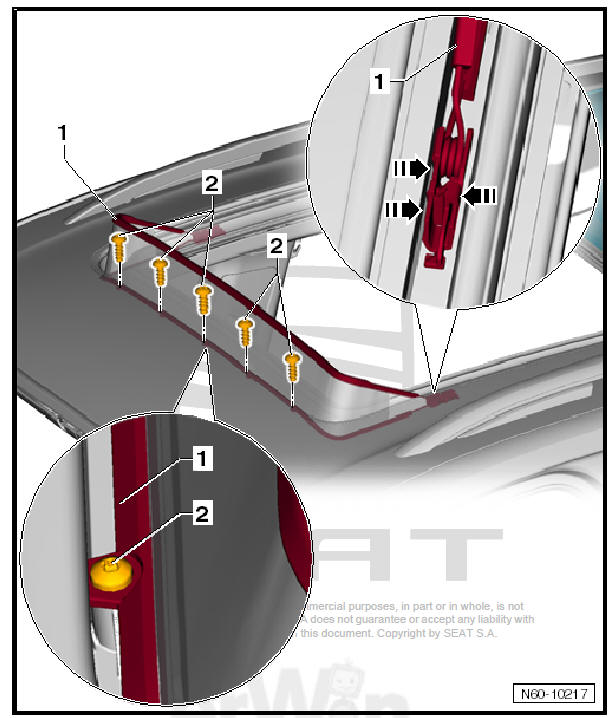

• Unclip the mounting bracket of the wind deflector out of the assembly frame -1- using a screwdriver -arrows-

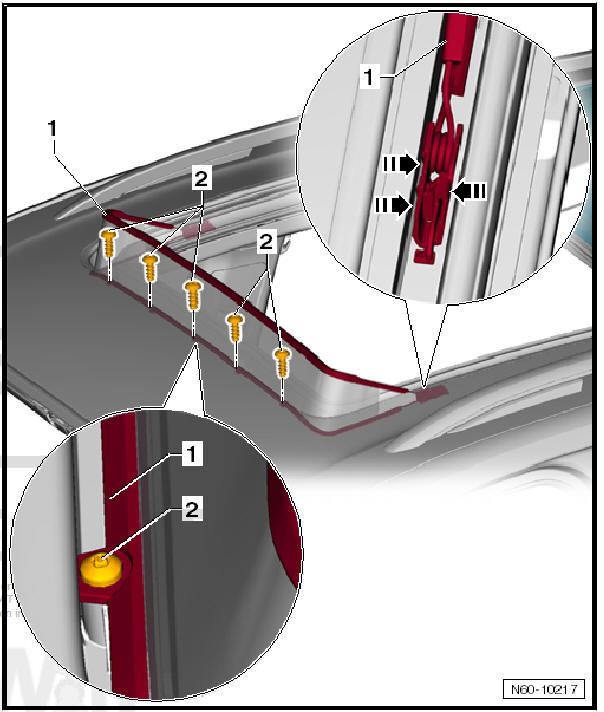

• Undo bolts -2- securing wind deflector -1-
• Take out wind deflector -1- upwards.

fitting

The installation is carried out in reverse order of removal for the removal procedures described.

• Removing and installing wind deflector bracket.

Tightening torque

Wind deflector bolts 2 Nm

Note Wind deflector mounting bracket must engage audibly.

Removing and installing wind deflector bracket

Removing

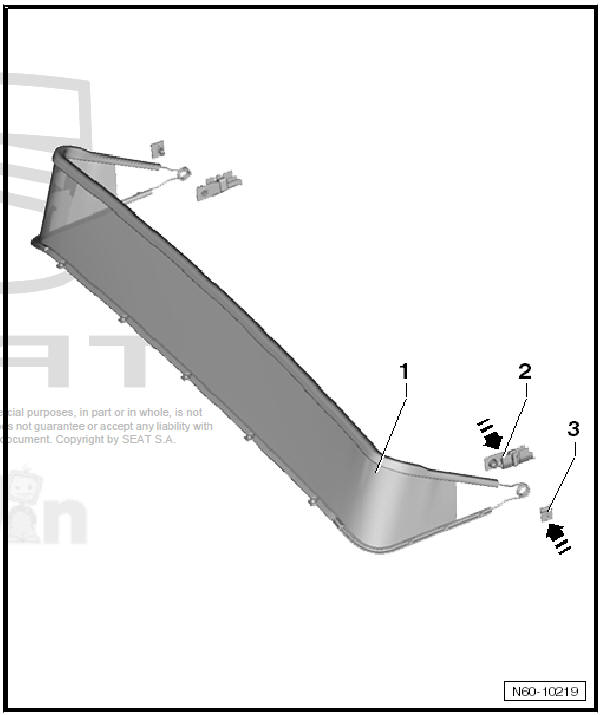

• Remove wind deflector -1-.
• Lever apart mounting bracket -2- and plugs -3-.

fitting

• Connect mounting bracket -2- and plugs -3- together.
• Installing wind deflector -1-.

Removing and installing preselector for glass panel and sun blind

Removing

• Remove lighting elements and front control unit.

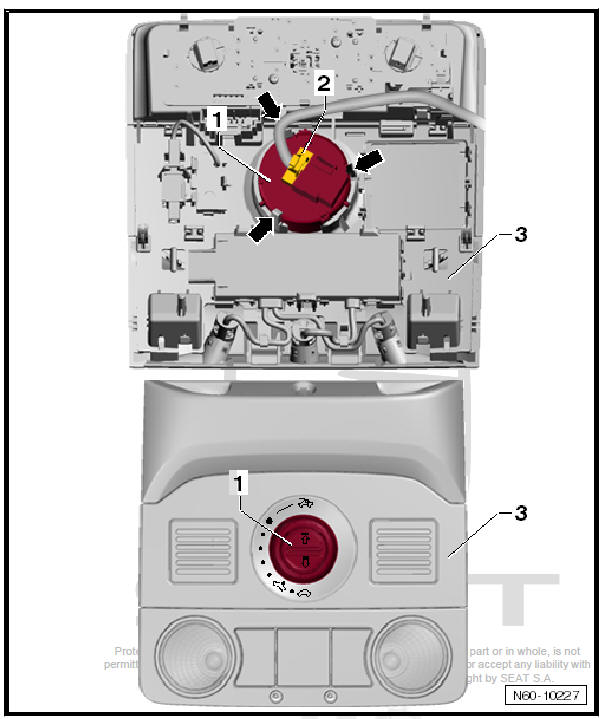

• Separate electrical connection-2-.
• Release locking hooks -arrows- and remove switch -1-.

fitting

• Push in switch -1- until locking hooks -arrows- engage audibly.
• Connect connector -2-.
