Seat Leon >> Remove and install securing strip

Securing strip, vehicles with 3 and 5 doors: removing and fitting

Special tools and workshop equipment required

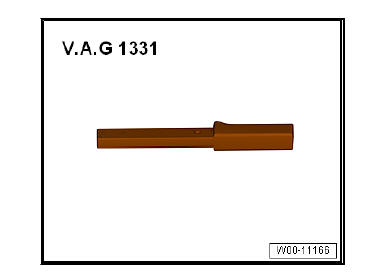

  • Torque wrench - V.A.G 1331-

Bumpers

Removing

  • Remove the bumper trim.

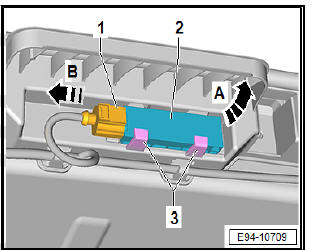

  • Release connector -1- and unplug.

Note Do not observe items -2- and -3-, the -arrow A- and the -arrow B-.

Bumpers

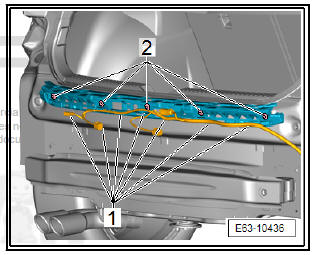

  • Loosen the clips -1- of the wiring harness.
  • Remove bolts -2- and cross member.

fitting

Installation is done in reverse order of removal operations.

  • Use the tightening torque of the screws.

Bumpers

Securing strip, model ST: remove and install

Special tools and workshop equipment required

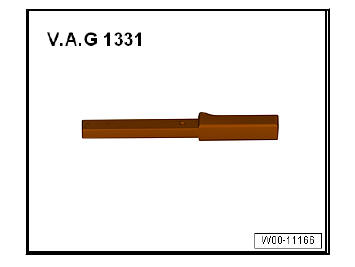

  • Torque wrench - V.A.G 1331-

Bumpers

Removing

  • Remove the bumper trim.

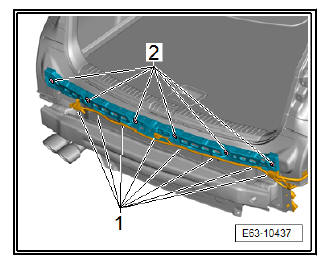

  • Loosen the clips -1- of the wiring harness.
  • Remove bolts -2- and cross member.

fitting

Installation is done in reverse order of removal operations.

  • Use the tightening torque of the screws.

Bumpers
