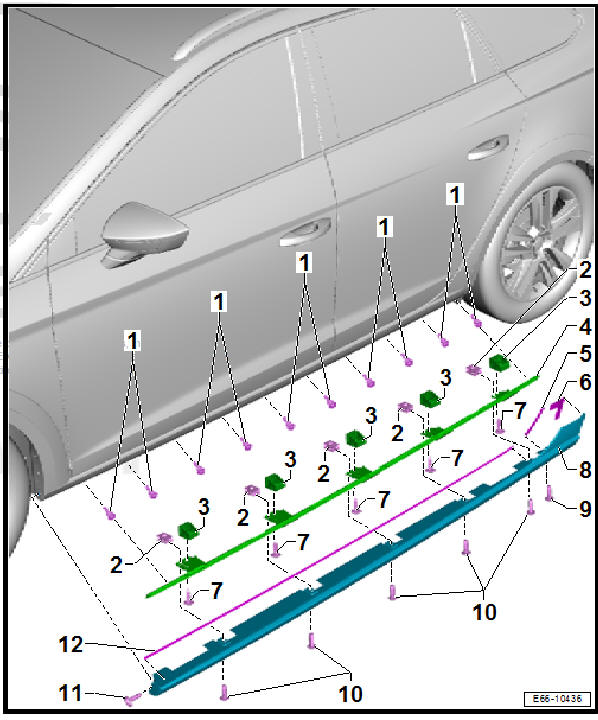

Seat Leon >> Exploded view - side member trim

Exterior equipment

  1. - Bolt.
    • 10 off
    • 1.5 Nm
  2. - Clips
    • 5 off
  3. - Support plate
    • 5 off
    • Secured to underbody with spreader clip.
  4. - Retaining strip
  5. - Double-sided adhesive tape
  6. - Double-sided adhesive tape
  7. - Bolt.
    • 5 off
    • 2.2 Nm
  8. - Side member extension
  9. - Bolt.
    • 2.2 Nm
  10. - Bolt.
    • 5 off
    • 2.2 Nm
  11. - Bolt.
    • 2.2 Nm
  12. - Double-sided adhesive tape

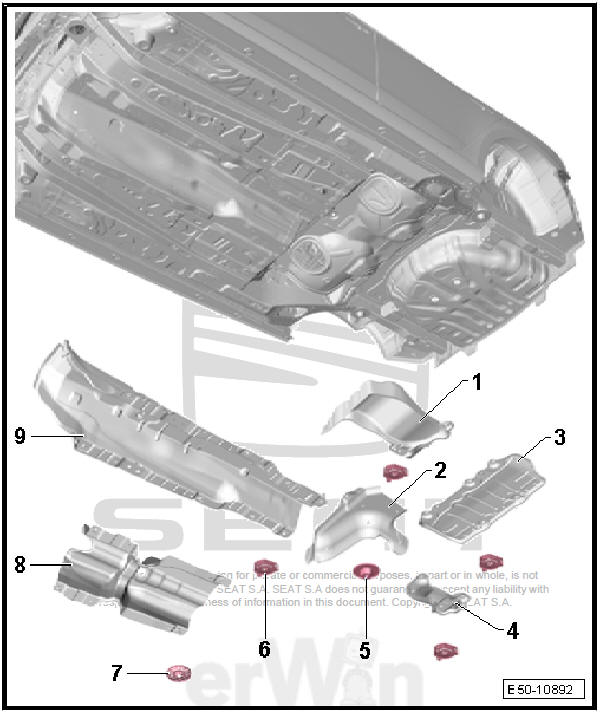

Exploded view - heat shield

Exterior equipment

  1. - Heat shield for fuel tank
    • Depending on version
  2. - Heat shield for the floor of the luggage compartment

Removing

  • Take off the nuts and remove the heat shield making sure that it does not deform in the process.
  1. - Heat shield for the floor of the luggage compartment
  2. - Heat shield for the underfloor, rear
  3. - Nut
    • Embossed steel plate
    • 4 off
  4. - Retaining clip
    • Integrated in the guard plate
    • 6 off
    • Always replace.
  5. - Retaining clip
    • Integrated in the guard plate
    • 4 off
    • Always replace.
  6. - Heat shield for propshaft
  7. - Heat shield for the centre tunnel
    Exploded view - water deflector
    Note The sequences below describe the processes for removal and installation for the right side of the vehicle. The corresponding sequences for the left side are similar with the exception that, ...

    Removing and installing sill panel trim
    Removing and installing side member trim, X-PERIENCE version Special tools and workshop equipment required Release lever - 3409- Adhesive strip remover - VAS 6349- Torque wrench ...
