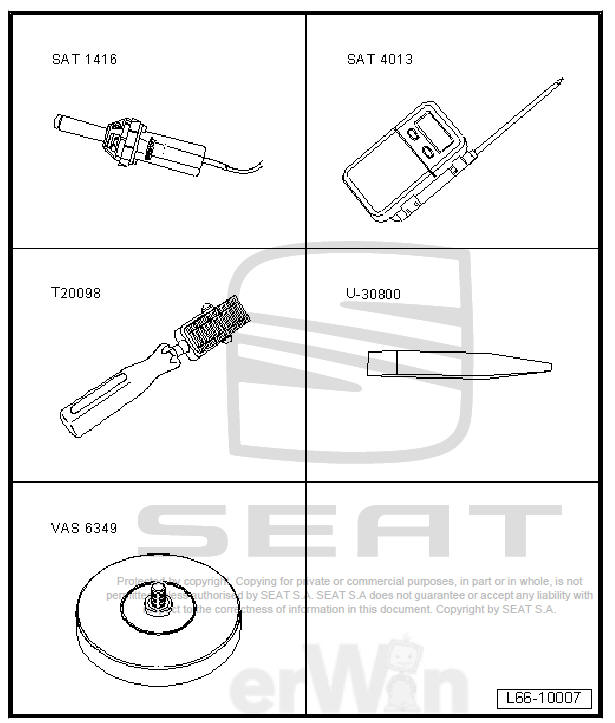

Special tools and workshop equipment required

• Hot-air blower - SAT 1416-
• Digital thermometer - SAT 4013-
• Thrust piece - T20098-
• Release lever - U 30800-
• Adhesive strip remover - VAS 6349-

Removing

• Remove the front door seal in the lower area.
• Heat the self-adhesive emblem to approx. 25ºC with the hot air blower - SAT 1416- .
• Unfasten the emblem with the help of the lever - U 30800- .
• Remove possible residual adhesive with the tool - VAS 6349- .

fitting

Note

• Do not remove the protective film of the self-adhesive emblem until the assembly work on the vehicle has been completed.
• If the emblem is installed for the first time on a new vehicle or on newly painted surfaces.
• The lettering must be bonded in place immediately after cleaning.
• Remove protective film just before the installation.

• Clean the area of the tailgate where new self-adhesive company emblem is to be applied with isopropanol or heptanes alcohol.
• Then treat the area where the new self-adhesive company badge should be applied using silicone cleaner.
• Allow to dry well.
• Using the hot air blower - SAT 1416- , heat the application area on the bodywork to approx. 35℃. Check the temperature using the digital thermometer - SAT 4013- .
• Remove the backing foil from the adhesive surface of the new logo.

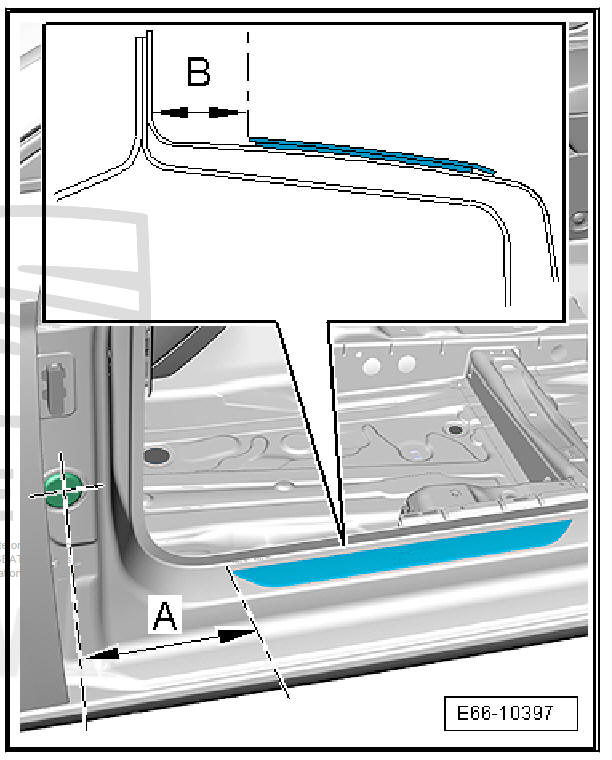

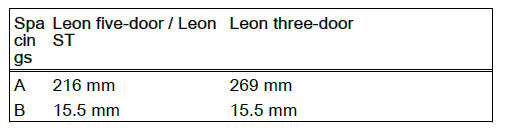

• Apply the new self-adhesive badge according to the dimensions specified in the following chart.

• Apply the self-adhesive company badge and press on with a force of around 5 kg using the pressure tool - T20098- .
