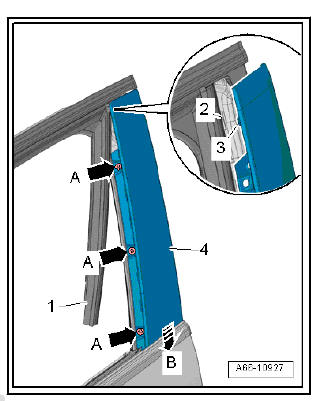

Removing

• Move door window to "open" position.
• Remove the seal -1- of the rear window guide in the area of the trim -4-.
• Unscrew and remove the screws -Arrows a-
• Remove spreader blocks.
• Slide the finisher -4- downwards -Arrow b-. This causes the tab -3- to protrude from shaft -2-.
• Push the trim outwards.
• Remove the trim upwards

fitting

Fit in reverse order from removal, remembering the following:

• Use the tightening torque of the screws.

Removing and installing trim panel for B-pillar (rear door)

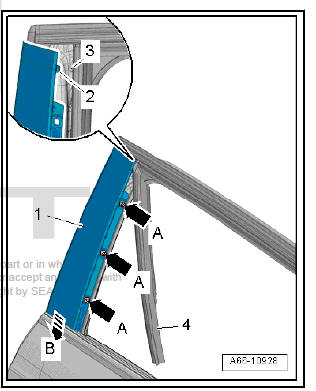

Removing

• Remove the rear door glass.
• Remove the seal -4- of the rear window guide in the area of the trim -1-.
• Unscrew bolts -arrows A-.
• Remove spreader blocks.
• Push the trim -1- downwards -arrow B- resulting in the bracket -2- hanging out of shaft -3-.
• Push the trim outwards.
• Remove the trim upwards

fitting

Fit in reverse order from removal, remembering the following:

• Use the tightening torque of the screws.
