Seat Leon >> Removing and installing cover for mirror

Special tools and workshop equipment required

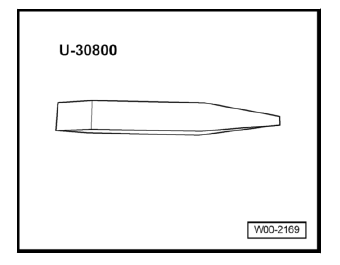

  • Release lever - U30800-

Removing

  • Remove the wing mirror glass .

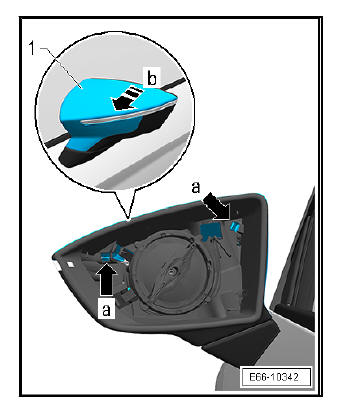

  • Unfasten the clips -Arrows a- and at the same time pull housing -1- in direction of -arrow b-.

Exterior equipment

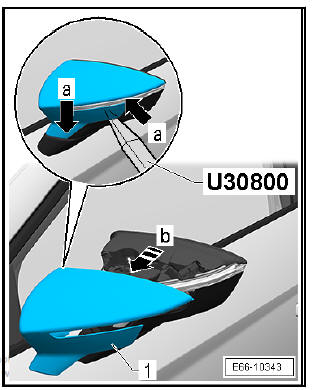

  • Use the lever - U30800- to unfasten the clips on the housing -1- in the areas indicated by the -arrows a-.
  • Move the housing -1- in direction of -arrow b- and remove it.

fitting

Fit in reverse order from removal, remembering the following:

  • Make sure that the clamps are aligned correctly in the respective mounts.

Exterior equipment

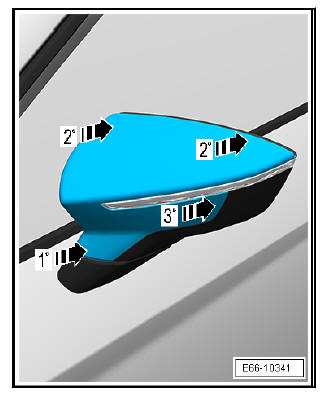

  • Press on the housing and the areas as indicated by the -arrows-. The clamps click audibly into place.
  • Mount the wing mirror glass.
