Seat Leon >> Removing and installing dipped beam bulb
SEAT Leon Service and Repair Manual / Electrical system / Lights, bulbs, switches - exterior / Headlamps / Removing and installing dipped beam
bulb
Note
- The illustrations show how to change the dipped beam bulb of the left headlight. The dipped-beam bulb in the right-hand headlamp is replaced in the same way.
- The headlight does not have to be removed.
Removing
- Switch off ignition and all electrical consumers.
Vehicles without access and start authorisation system
- Remove ignition key, if fitted.
Vehicles with access and start authorisation system
- Store the ignition key outside the vehicle to prevent the ignition from being switched on unintentionally.
Continued for all vehicles

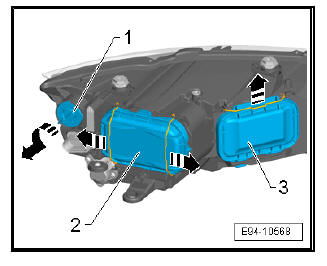

- Separate the headlight cover -2-.

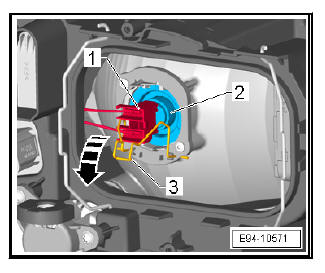

- Separate the connector -1- from the left headlight dipped beam bulb - M29- .
- Press on the spring-loaded bar of the bulb and push to the right -arrow-.
- Hold the bulb at the rear and remove pull out of the headlight.
Installing
Note
- Never allow bulb glass to come into contact with hands.
- When installing, make sure that the lugs of the lamp are fitted correctly to the headlight mount.
Installing and removing servomotor for
headlight range adjustment V48 / V49
Installing and removing servomotor for
headlight range adjustment V48 / V49,
halogen headlight
Special tools and workshop equipment required
Lever - U 30800-
Note
In the figures, the r ...
Removing and installing dipped beam
bulb M30 / M32
Note
The following illustrations show renewal of the main beam bulb
for the left headlight. The high-beam bulb in the right-hand
headlamp is replaced in the same way.
The headlight does not ...
