Seat Leon >> Removing and installing dipped beam bulb M30 / M32

Note

  • The following illustrations show renewal of the main beam bulb for the left headlight. The high-beam bulb in the right-hand headlamp is replaced in the same way.
  • The headlight does not have to be removed.

Removing

  • Switch off ignition and all electrical consumers.

Vehicles without access and start authorisation system

  • Remove ignition key, if fitted.

Vehicles with access and start authorisation system

  • Store the ignition key outside the vehicle to prevent the ignition from being switched on unintentionally.

Continued for all vehicles

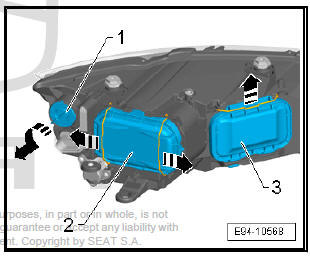

  • Separate the headlight cover -3-.

Lights, bulbs, switches - exterior

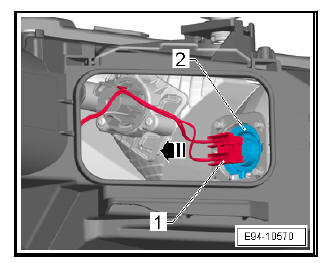

  • Disconnect the plug connector -1- from the bulb for left high beam - M30- .
  • Remove the bulb -2- from the frame of the reflector by pressing it.

Lights, bulbs, switches - exterior

Installing

Note

  • Never allow bulb glass to come into contact with hands.
  • When installing, make sure that the lugs of the lamp are fitted correctly to the headlight mount.
