Seat Leon >> Removing and installing parking light bulb M1 / M3

Note

  • The illustrations show the change of bulb for daytime running lights and parking light on the left headlight. The change of the bulb for daytime running light and parking light on the right headlight is done as follows.
  • The headlight does not have to be removed.

Removing

  • Switch off ignition and all electrical consumers.

Vehicles without access and start authorisation system

  • Remove ignition key, if fitted.

Vehicles with access and start authorisation system

  • Store the ignition key outside the vehicle to prevent the ignition from being switched on unintentionally.

Continued for all vehicles

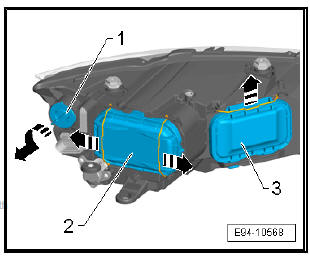

  • Rotate bulb holder -1- to the left remove it in the direction of the -arrow-.

Lights, bulbs, switches - exterior

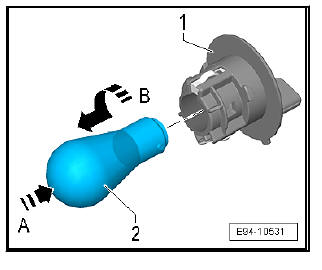

  • Hold the bulb holder -1- tight and press on the bulb -2- and turn to the left in the direction of the -arrow-.
  • Remove bulb -2- from holder -1-.
