Seat Leon >> Lights in exterior mirror

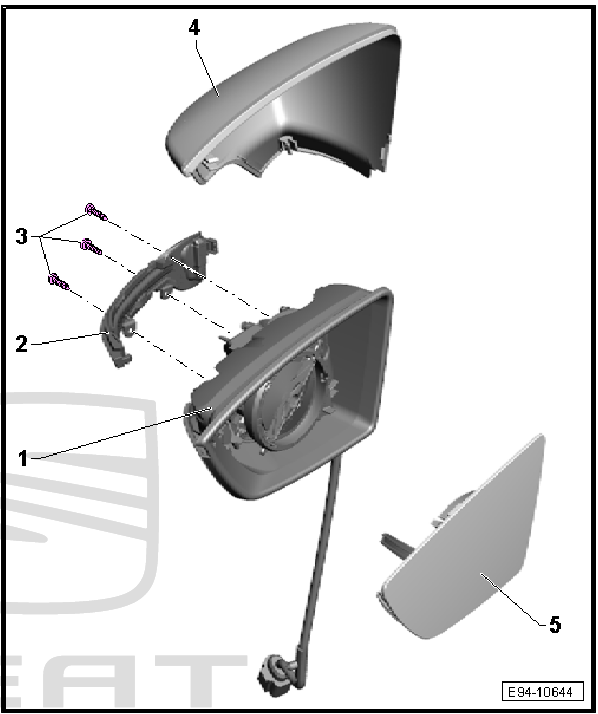

Assembly overview - lights in exterior mirror

  1. - Mirror mounting
    • Installing and removing
  2. - Turn signal light bulb
    • Driver side exterior mirror turn signal bulb - L131-
    • Front passenger side exterior mirror turn signal bulb - L132-
    • Removal and installation
  3. - Bolts
    • 0.9 Nm
  4. - Cover for mirror
    • Installing and removing
  5. - Mirror glass
    • Installing and removing

Installing and removing the exterior mirror turn signal bulb L131 / L132

Removing

  • Switch off ignition and all electrical consumers.

Vehicles without access and start authorisation system

  • Remove ignition key, if fitted.

Vehicles with access and start authorisation system

  • Store the ignition key outside the vehicle to prevent the ignition from being switched on unintentionally.

Continued for all vehicles

  • Remove mirror cover.

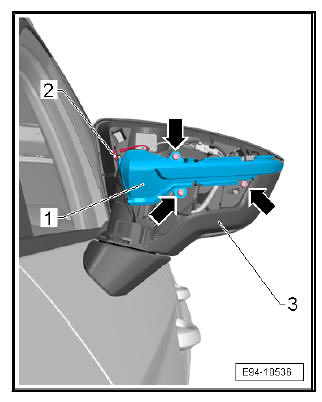

  • Unplug the electrical connector -2-.
  • Unscrew bolts -arrows-.
  • Remove the bulb for the indicator -1- upwards out of the mount -3- in the exterior mirror actuator.

Installing

Installation is carried out in the reverse sequence; note the following:

Lights, bulbs, switches - exterior

Note Entire turn signal in exterior mirror must be renewed as a complete unit if an LED is defective.
