Seat Leon >> Model badges and brand emblems
SEAT Leon Service and Repair Manual / General body repairs, exterior / Exterior equipment / Model badges and brand emblems

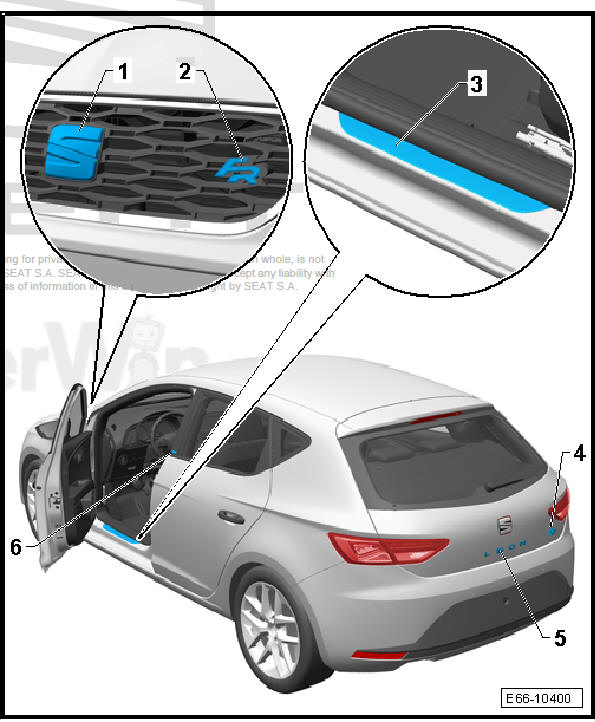

Exploded view - Model badges and brand emblems
- - Company emblem at front
- Fitted to top grilled on bumper trim panel
- Secured to top grille on bumper trim panel with retaining clips
- - Front company emblem of
model version
- Secured to top grille on bumper trim panel with retaining clips
- Remove and install "FR model"
- Remove and install "CUPRA model"
- - Company emblem on the
door sills
- 2 off
- Secured to body with cement
- Fitted to front door sills on driver and passenger sides
- Removing and fitting
- - Rear company emblem of model version
- Secured to tailgate with cement
- - Rear company emblem of model
- Secured to tailgate with cement
- - Self-adhesive side emblem
- Dimensions - lettering and emblems on rear lid
- Self-adhesive, side emblems (3 and 5- door models): replacing
- Removing and installing emblems at vehicle front
