Seat Leon >> Removing and installing the front wheel housing spoiler

SEAT Leon Service and Repair Manual / General body repairs, exterior / Exterior equipment / Wheel housing liner / Removing and installing the front wheel housing spoiler

Special tools and workshop equipment required

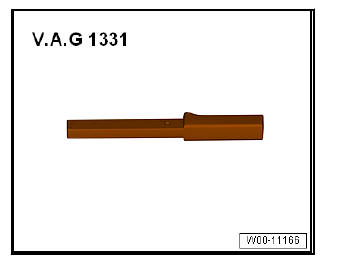

Torque wrench - V.A.G 1331-

Exterior equipment

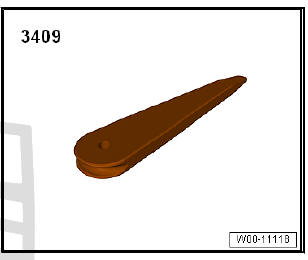

Release lever - 3409-

Exterior equipment

Removing

Caution

The following does not have to be removed to remove the front wheel housing spoiler:

Noise insulation

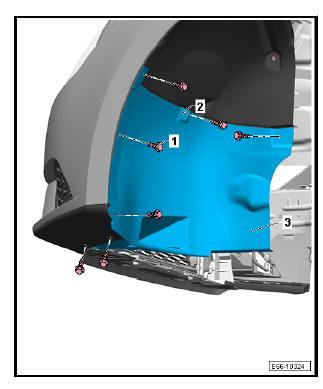

Remove screws -1-.

Note If the noise insulation is fitted, so too must the screws affixing the noise insulation to the wheel housing spoiler be removed.

Remove wheel house spoiler -3-.

fitting

Fit in reverse order from removal, remembering the following:

Only if damaged: replace quick locking nuts.
Use the tightening torque of the screws.

Exterior equipment

Rear wheel housing spoiler removing and installing

Special tools and workshop equipment required

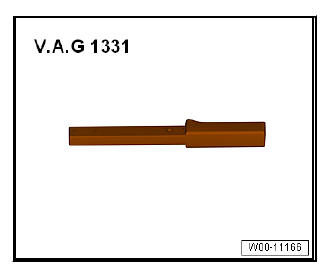

Torque wrench - V.A.G 1331-

Exterior equipment

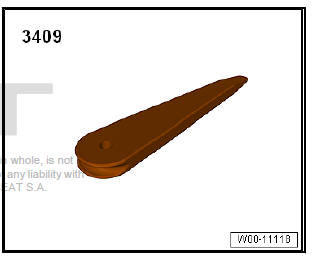

Release lever - 3409-

Exterior equipment

Removing

Remove the rear wheel.
Remove bolts -arrows-.
Remove wheel house spoiler -1-.

fitting

Fit in reverse order from removal, remembering the following:

Specified torques

Overview	Tightening torque (in Nm)
Mounting screws for rear wheel housing spoiler	2.2 +- 0.3

Tighten wheel lugs with tightening torque

Exterior equipment
