Special tools and workshop equipment required

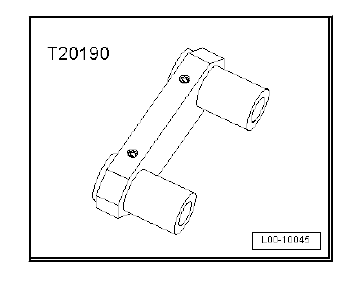

• Centre guide - T20190-

Removing

• Switch off ignition and all electrical consumers.

Vehicles without access and start authorisation system

• Remove ignition key, if fitted.

Vehicles with access and start authorisation system

• Store the ignition key outside the vehicle to prevent the ignition from being switched on unintentionally.

Continued for all vehicles

• Remove steering column switch module.

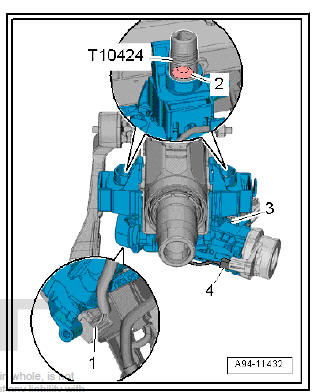

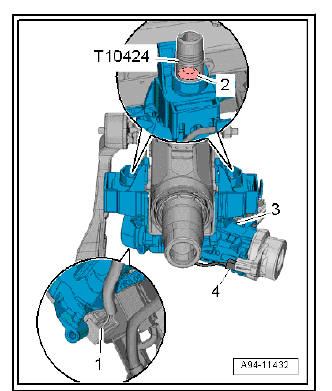

• Unplug electrical connectors -1 and 4-.
• Remove breakable head bolts -2- by drilling them with an angular hand drill.

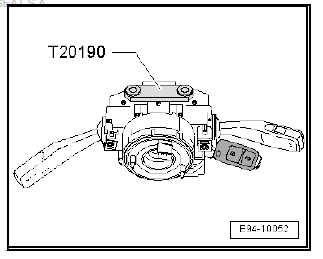

• Drill out both screw heads with the tool T20190 and a Ø 5-mm drill, drilling depth 7 mm. Replace the drill with a Ø 10-mm drill and repeat the process until both screw heads have been removed from the screws.
• Remove ignition/starter switch.
• Remove lock cylinder

• Detach steering lock housing -3-.

Installing

Installation is carried out in the reverse sequence; note the following:

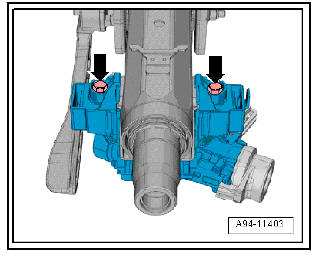

• Tighten new bolts -arrows- until head shears off.
