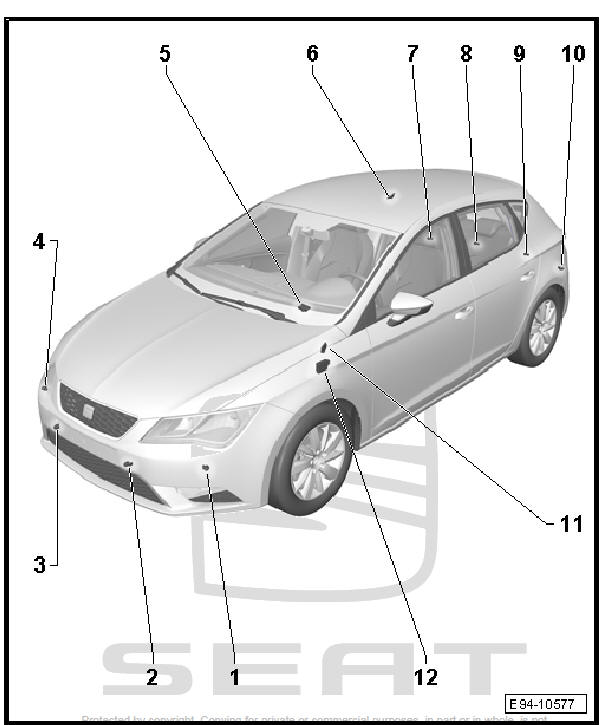

Assembly overview - parking aid

Lights, bulbs, switches - exterior

  1. - Front left parking aid sender - G255-
    • Removal and installation
  2. - Front centre left parking aid sender - G254-
    • Removal and installation
  3. - Front centre right parking aid sender - G253-
    • Removal and installation
  4. - Front right parking aid sender - G252-
    • Removal and installation
  5. - Parking aid button - E266-
    • Removing and installing
  6. - Rear parking aid warning buzzer - H15-
    • Remove and install, Leon
    • Remove and install, Leon SC
    • Remove and install, Leon ST
  7. - Rear right parking aid sender - G206-
    • Removal and installation
  8. - Rear centre right parking aid sender - G205-
    • Removal and installation
  9. - Rear centre left parking aid sender - G204-
    • Removal and installation
  10. - Rear left parking aid sender - G203-
    • Removal and installation
  11. - Front parking aid warning buzzer - H22-
    • Removal and installation
  12. - Parking aid control unit - J446-
    • Removal and installation
