Seat Leon >> Button for tyre pressure control unit - E226- : removing and installing

SEAT Leon Service and Repair Manual / Electrical system / Lights, bulbs, switches - interior / Controls / Button for tyre pressure control unit - E226- : removing and installing

Special tools and workshop equipment required

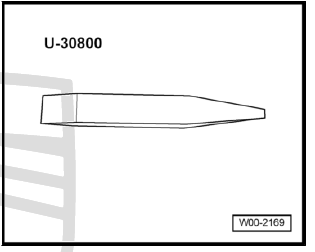

  • Lever - U30800-

Removing

  • Switch off ignition and all electrical consumers.

Vehicles without access and start authorisation system

  • Remove ignition key, if fitted.

Vehicles with access and start authorisation system

  • Store the ignition key outside the vehicle to prevent the ignition from being switched on unintentionally.

Continued for all vehicles

  • Open the glove compartment cover.

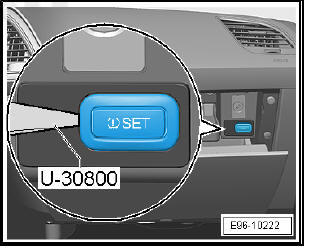

  • Carefully remove button for tyre pressure control unit - E226- -1- using the lever - U30800- .
  • Disconnect the connector from the button for the tyre pressure control unit - E226- .

Installing

Installation takes place in reverse order.

Lights, bulbs, switches - interior

Removing and installing the starter button - E378-

Special tools and workshop equipment required

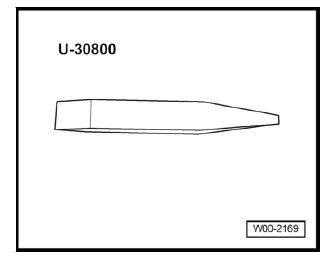

  • Lever - U30800-

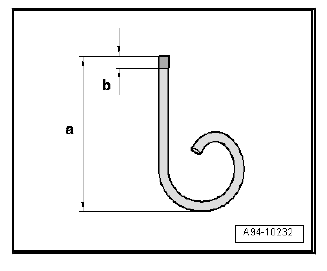

Shape an implement with two wire hooks as outlined below.

  • Bend one end of a welding rod with diam. Ø 1 mm as a loop and cut down to length -a-.
    • Dimension -a- = about 50 mm
  • File wire hook so that end is pointed.
    • Dimension -b- = 5 mm

Removing

  • Switch off ignition and all electrical consumers.

Vehicles without access and start authorisation system

  • Remove ignition key, if fitted.

Vehicles with access and start authorisation system

  • Store the ignition key outside the vehicle to prevent the ignition from being switched on unintentionally.

Continued for all vehicles

  • Remove centre console cover.

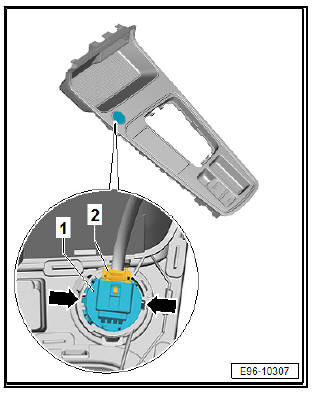

  • Separate the electrical connector -2- from the starter button - E378- -1-.
  • Introduce the two wire hooks into the recesses -arrows- and unclip the retaining clips from the starter button - E378- .
  • Pull the starter button - E378- -1- from the centre console cover; leave the wire hooks in the recesses.

Installation

Install in reverse order.

  • Perform functional check.
