Seat Leon >> Location overview - Antenna systems
SEAT Leon Service and Repair Manual / Communication / Communication / Aerial systems / Location overview - Antenna systems

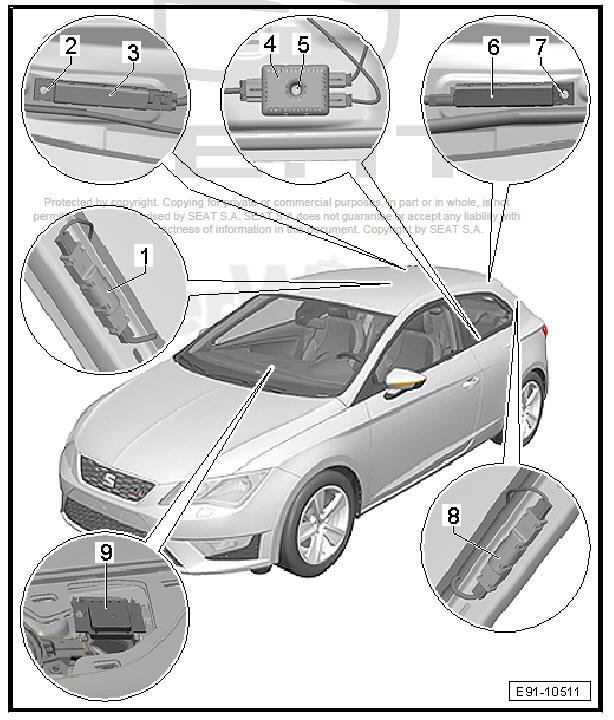

Location overview - Antenna systems, 2-door vehicle
- - Frequency modulation (FM)
frequency filter in positive wire
- R179-
- Removal and installation
- - Screw
- 2 Nm
- - Aerial amplifier 2 - R111-
- Removal and installation
- - Frequency filter for the amplitude
modulation (AM) -
R177-
- Removal and installation
- - Screw
- 2 Nm
- - Aerial amplifier - R24-
- Removal and installation
- - Screw
- 2 Nm
- - Frequency modulation (FM)
frequency filter in negative wire
- R178-
- Removal and installation
- - GPS aerial - R50-

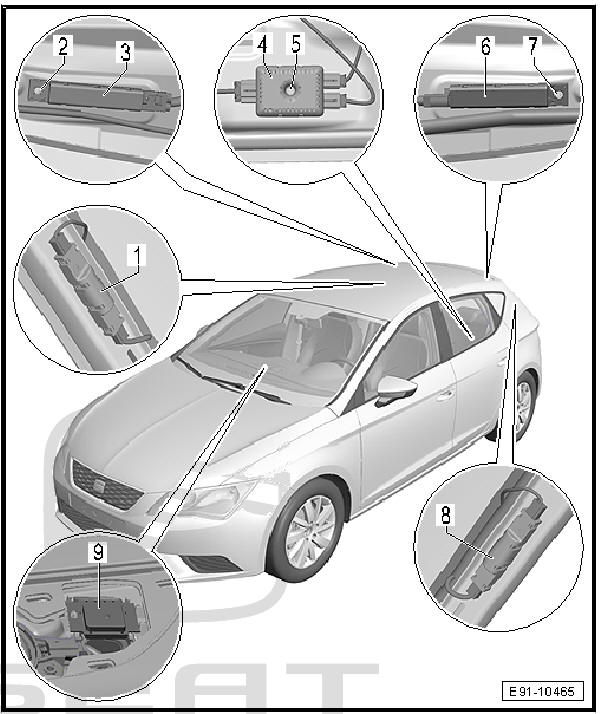

Location overview - Antenna systems, 4-door vehicle
- - Frequency modulation (FM)
frequency filter in positive wire
- R179-
- Removal and installation
- - Screw
- 2 Nm
- - Aerial amplifier 2 - R111-
- Removal and installation
- - Frequency filter for the amplitude
modulation (AM) -
R177-
- Removal and installation
- - Screw
- 2 Nm
- - Aerial amplifier - R24-
- Removal and installation
- - Screw
- 2 Nm
- - Frequency modulation (FM)
frequency filter in negative wire
- R178-
- Removal and installation
- - GPS aerial - R50-
Aerial systems
...
Removing and installing aerial amplifier
Removing and installing aerial amplifier,
R24
removing
Switch off ignition and all electrical equipment.
Vehicles without access and start authorisation system
Remove ignition key, if fit ...
