Removing and installing aerial amplifier, R24

removing

• Switch off ignition and all electrical equipment.

Vehicles without access and start authorisation system

• Remove ignition key, if fitted.

Vehicles with access and start authorisation system

• Store ignition key outside the vehicle to prevent the ignition from being switched on unintentionally.

Continued for all vehicles

• Remove the top tailgate trim .

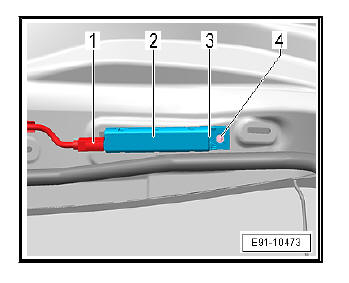

• Release and unplug connectors -1- and -3- at aerial amplifier - R24- -2-.
• Unscrew bolt -4- and remove aerial amplifier - R24- -2- from rear lid.

fitting

Installation is carried out in the reverse sequence.

Removing and installing aerial amplifier, R111

removing

• Switch off ignition and all electrical equipment.

Vehicles without access and start authorisation system

• Remove ignition key, if fitted.

Vehicles with access and start authorisation system

• Store ignition key outside the vehicle to prevent the ignition from being switched on unintentionally.

Continued for all vehicles

• Remove the top tailgate trim.

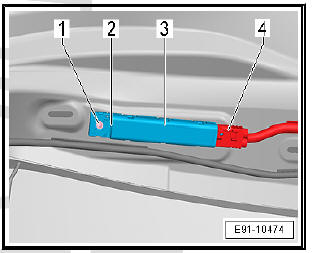

• Unlock and remove the connectors -2- and -4- of the Aerial amplifier 2 - R111- -3-.
• Unscrew bolt -1- and remove aerial amplifier 2 - R111- -3- from rear lid.

fitting

Installation is carried out in the reverse sequence.
