Seat Leon >> Coolant lines on condenser - disconnect and connect
SEAT Leon Service and Repair Manual / Heating and air conditioning / Air conditioning system / Refrigerant circuit / Coolant lines on condenser - disconnect
and connect
Special tools and workshop equipment required
- Air conditioner service station
- Engine bung set - VAS 6122-
Removal:
- Turn off the ignition and all electricity consumers.
Vehicles without access and start authorisation system
- Remove ignition key, if fitted.
Vehicles with access and start authorisation system
- Store ignition key outside the vehicle to prevent the ignition from being switched on unintentionally.
Continued for all vehicles
- Extract refrigerant.
- Observe instructions when working on refrigerant circuit.
- Removing front bumper cover.

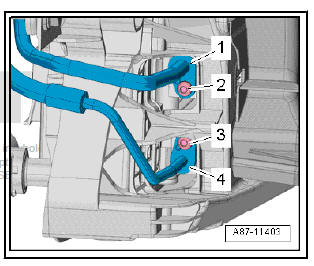

- Unscrew bolts -2- and -3- and remove refrigerant lines -1- and -4-.

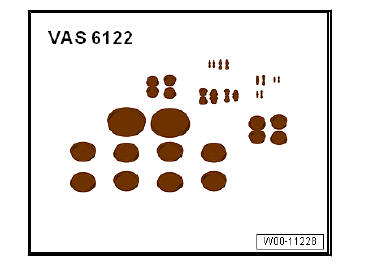

- Seal open lines and connections with clean plugs from the Engine sealing plug set - VAS 6122- .
Installing
Install in reverse order of removal; note the following.
- Replace the O-rings.
- If applicable, check the fitted pin -4- for damage and correct positioning.
- Check the guide ring -2- at the refrigerant line connection for damage.

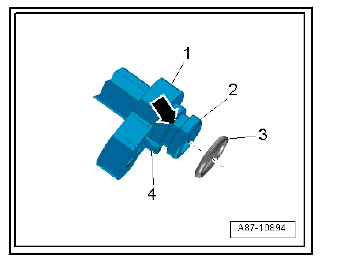

- Insert the O-ring -3- in the groove -arrow- at the connection of the refrigerant line -1-.
Note
- Moisten O-rings with refrigerant oil before installing.
- Check the refrigerant pipes to the evaporator for contamination and damage.
- Pay attention to correct positioning of the O-rings in the groove of the corresponding refrigerant pipe.
- Routing and attachment of refrigerant tubes.
- Refill with refrigerant and refrigerant oil.
