Seat Leon >> Lower suspension link, swivel joint

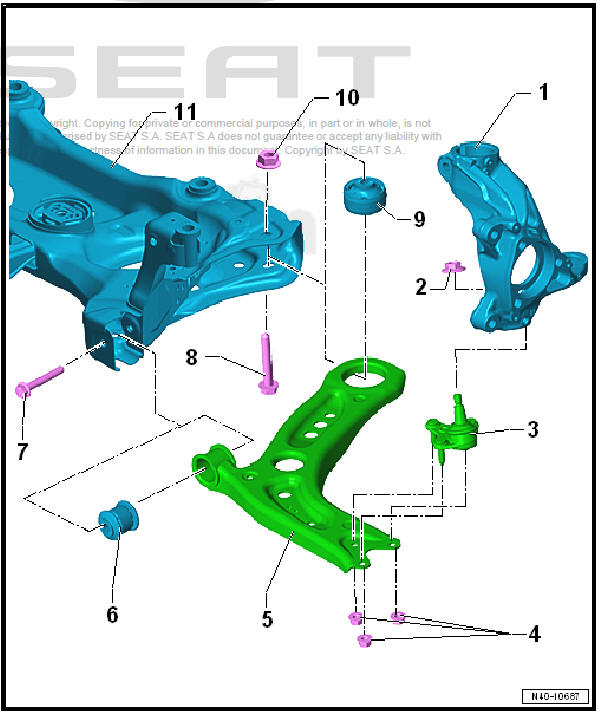

Assembly overview - lower suspension link, swivel joint

Front suspension

  1. - Wheel bearing housing
    • Different versions possible.
    • Removing and installing
  2. - Nut
    • Always renew after removing
    • 60 Nm
  3. - Swivel joint
    • Removing and installing
  4. - Nut
    • Always renew after removing
    • Tighten in unladen state
    • 40 Nm +45º
  5. - Lower suspension link
    • Removing and installing
  6. - Bonded rubber bush (front)
    • Replace
  7. - Bolt
    • Always renew after removing
    • Tighten in unladen state
    • 70 Nm +180º
  8. - Bolt
    • Always renew after removing
    • 70 Nm +180º
  9. - Bonded rubber bush (rear)
    • Replace
  10. - Nut
  11. - Sub-frame
Suspension strut - Repair
Special tools and workshop equipment required Torque wrenches - V.A.G 1332- Spring tensor - V.A.G 1752/1- Spring retainer - V.A.G 1752/4- Shock absorber set - T10001- Commercially ...

Removing and installing lower suspension link
Removing and installing lower suspension link, vehicle with manual gearbox or dual clutch gearbox 0CW Special tools and workshop equipment required Torque wrenches - V.A.G 1332- Removing ...
