Seat Leon >> Checking ABS sensor ring
SEAT Leon Service and Repair Manual / Brake system / Anti-lock brake system / Sensors / Checking ABS sensor ring
Special tools and workshop equipment required

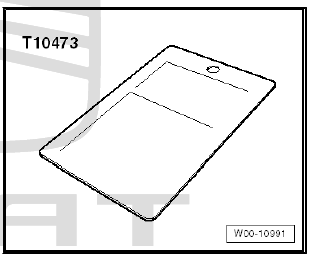

- Sensor gauge - T10473-
Operation process
- Wheel bearing unit is removed.

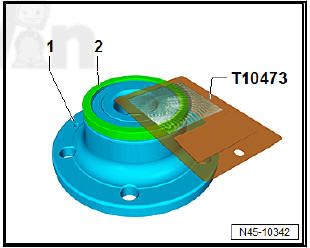

- Using sensor gauge - T10473- , check ABS sensor ring -2- all round, as shown in illustration.
- - Wheel bearing unit
- - Seal with integrated ABS sensor ring

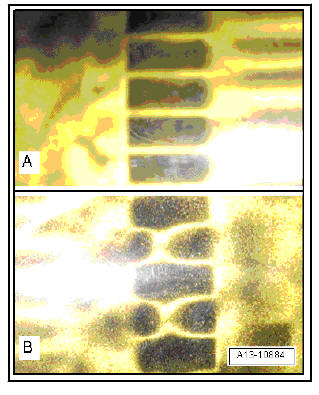

Test pattern for ABS sensor ring:
- - ABS sensor ring is OK
- - ABS sensor ring is defective
