Seat Leon >> Removing and installing switch for parking brake, vehicles with manual parking brake

SEAT Leon Service and Repair Manual / Brake system / Anti-lock brake system / Sensors / Removing and installing switch for parking brake, vehicles with manual parking brake

Removing:

  • Remove centre console.
  • Move the drivers seat forward.

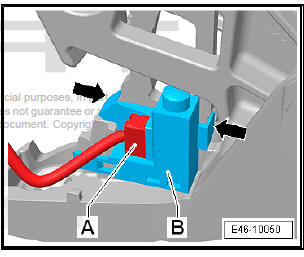

  • Unclip connectors -A- of the handbrake warning switch - F9- -B-.
  • Clip out the securing tabs -arrows- of the handbrake warning switch - F9- -B- and remove.

Installation:

Installation is carried out in the reverse order.

Anti-lock brake system

Removing and installing brake servo vacuum sender

Note

  • The vacuum sensor - G608- is only installed on petrol engines.
  • The vacuum sensor - G608- is located in the non-return valve of the brake servo.

Removing:

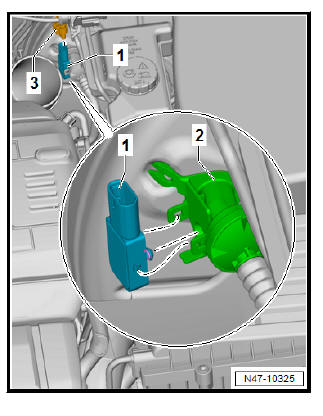

  • Remove connector -3- from the vacuum sensor - G608- -1-.
  • Remove the vacuum sensor - G608- -1- from the non-return valve -2-.

Installation:

  • Installation is carried out in the reverse order.

Anti-lock brake system

Removing and installing ESP sensor unit - G419-

Lateral acceleration sender - G200- , yaw rate sender - G202- and longitudinal acceleration sender - G251- are installed in the ABS control unit - J104- .

After replacing the ESP sensor unit - G419- the ABS control unit - J104- must be encoded and a basic adjustment of the "brake system" carried out.

WARNING

Severe shocks (e.g. dropping, impact) may damage the ESP sensor unit - G419- . The ESP sensor unit - G419- may not then be used any further.
    Removing and installing brake light switch
    Removing and installing brake light switch, LHD Note The brake light switch is located in the brake master cylinder. The brake light switch is not adjustable. Special tools and workshop equ ...
