Seat Leon >> Schematic overview - gearbox
SEAT Leon Service and Repair Manual / 5-speed manual gearbox 0AH / Controls, housing / Gearbox: disassembly and assembly / Schematic overview - gearbox

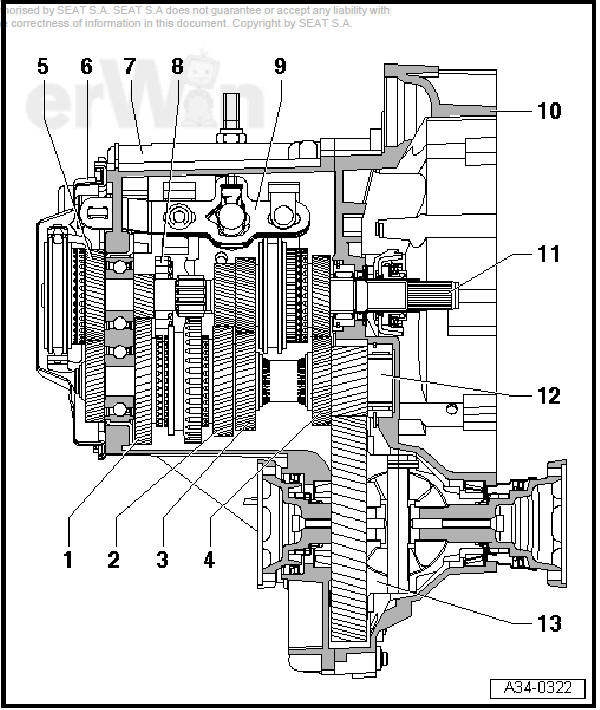

- - 1st gear
- - 2nd gear
- - 3rd gear
- - 4th gear
- - 5th gear
- - Gearbox casing cover
- - Gearbox housing
- - Reverse gear wheel
- - Selector mechanism
- (Gear change prongs)
- - Clutch housing or
- - Input shaft
- - Secondary shaft
- - Differential:
Overview - gearbox

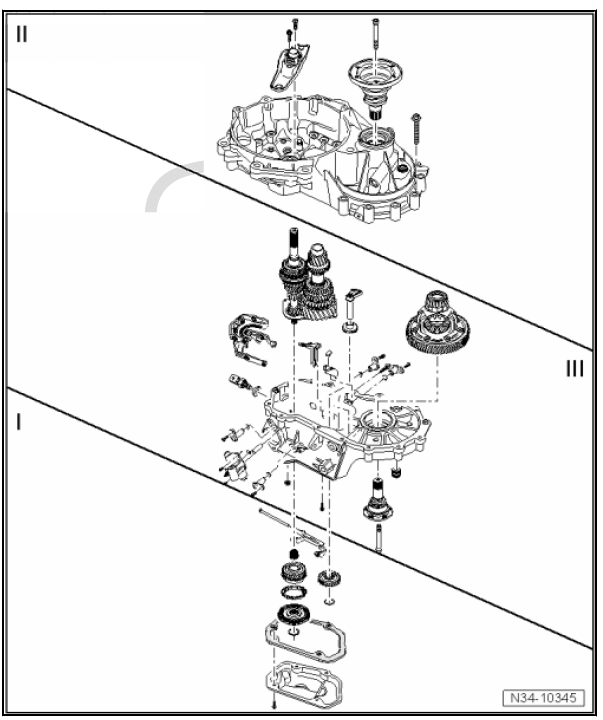

Gearbox: disassembly and assembly
Removing and installing gearbox housing cover, clutch housing,
selector shaft with selector mechanism cover, input shaft, output
shaft, differential and selector mechanism.
Special tools and worksh ...
See also:
Removing and installing control unit for
electronic steering column lock - J764-
Note
When renewing control unit, select Replacement function for relevant
control unit in "Guided Fault Finding" or "Guided Functions"
using - Vehicle diagnostic tester.
Special tools and workshop ...
